Outhouse

Replacement dwelling, Forest of Dean

Outhouse

Outhouse is a purpose designed, highly sustainable site-specific live work home for two artists, constructed as a replacement dwelling in a remote location within the Forest of Dean. The site lies in a sensitive rural location and comprises 4 acres on a south facing gently sloping, wooded hillside.

Commissioned in 2010, our clients sought an environmentally responsible, lifetime and inspiring home. The building was to be contemporary and to respond sensitively and yet positively to the site, creating a timeless, quality architectural solution that would contribute both to the immediate locality and to the wider rural area in general.

Outhouse

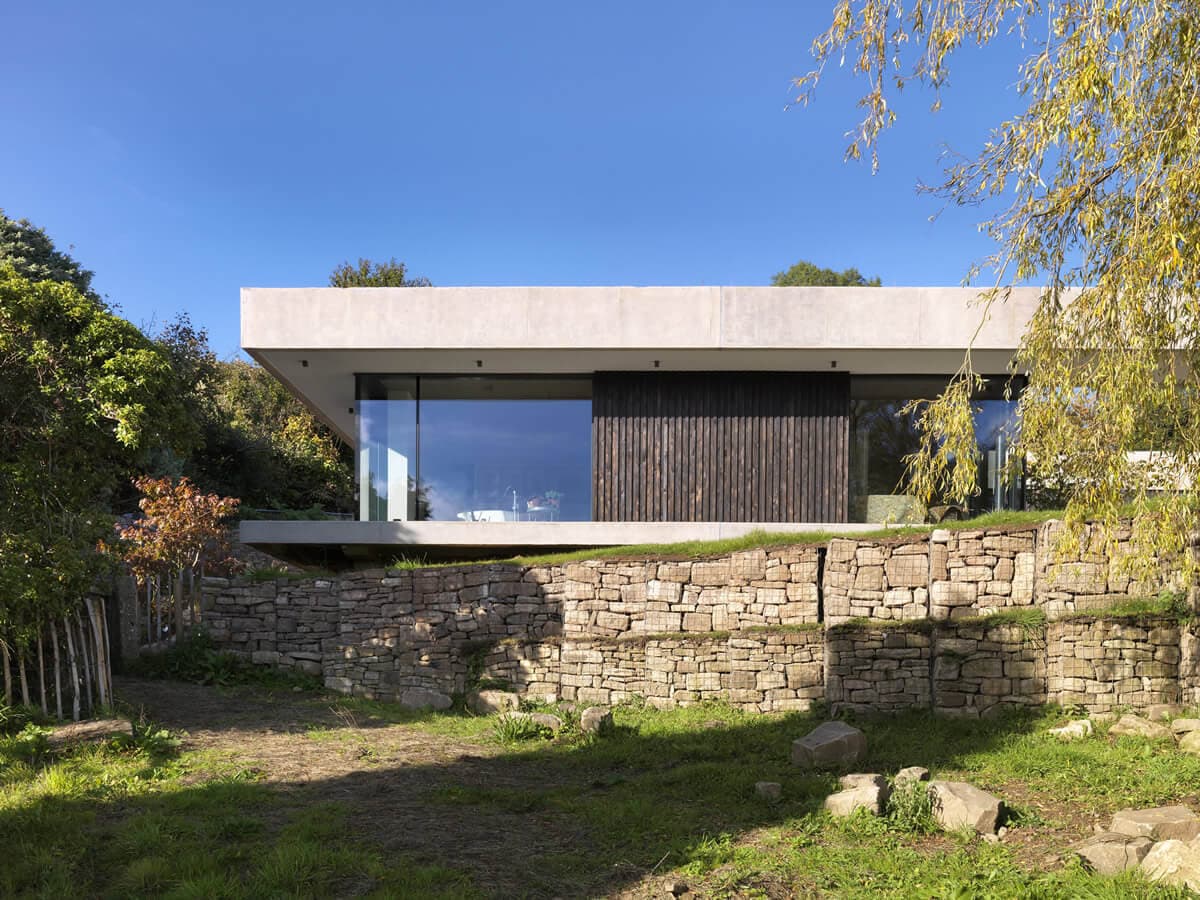

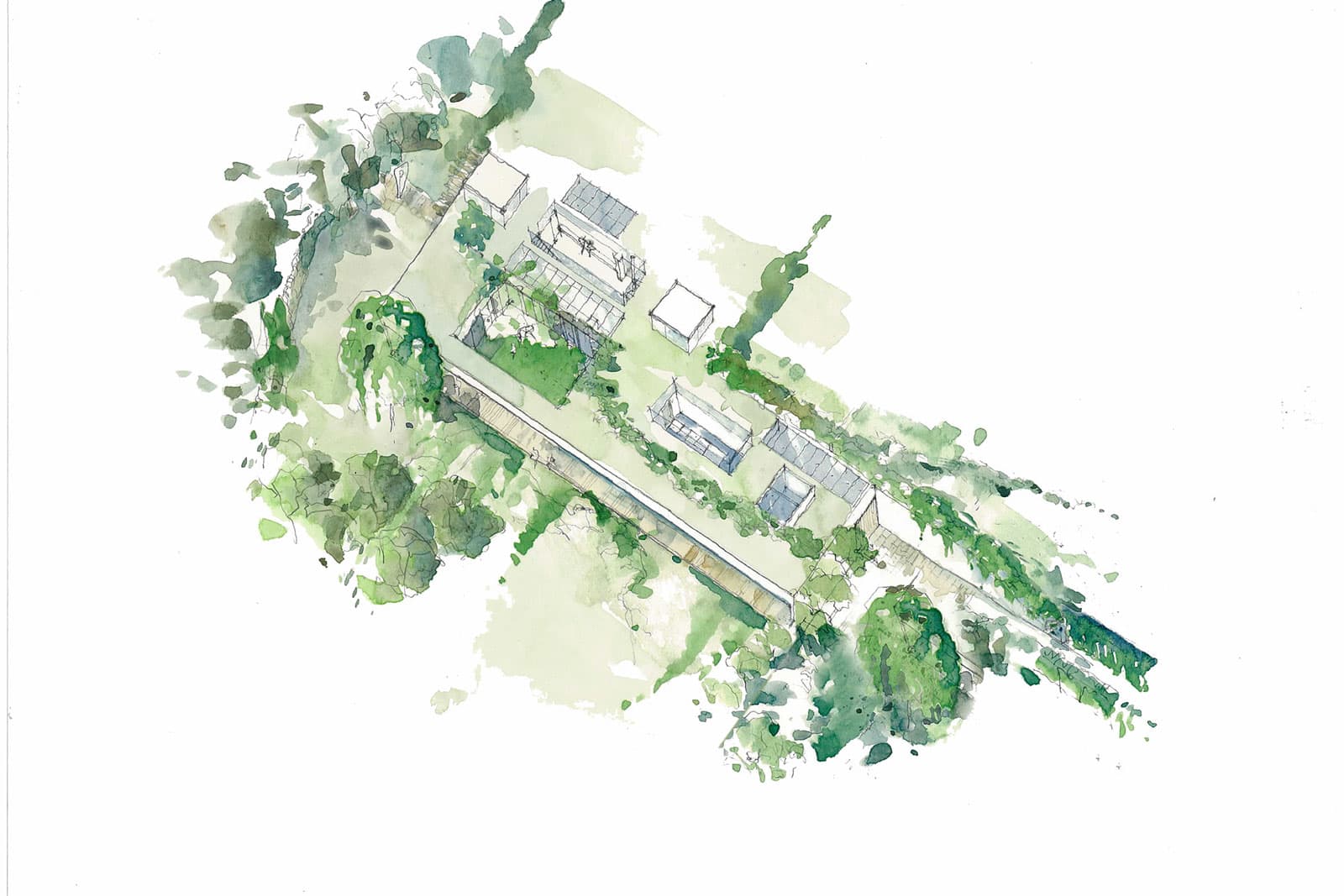

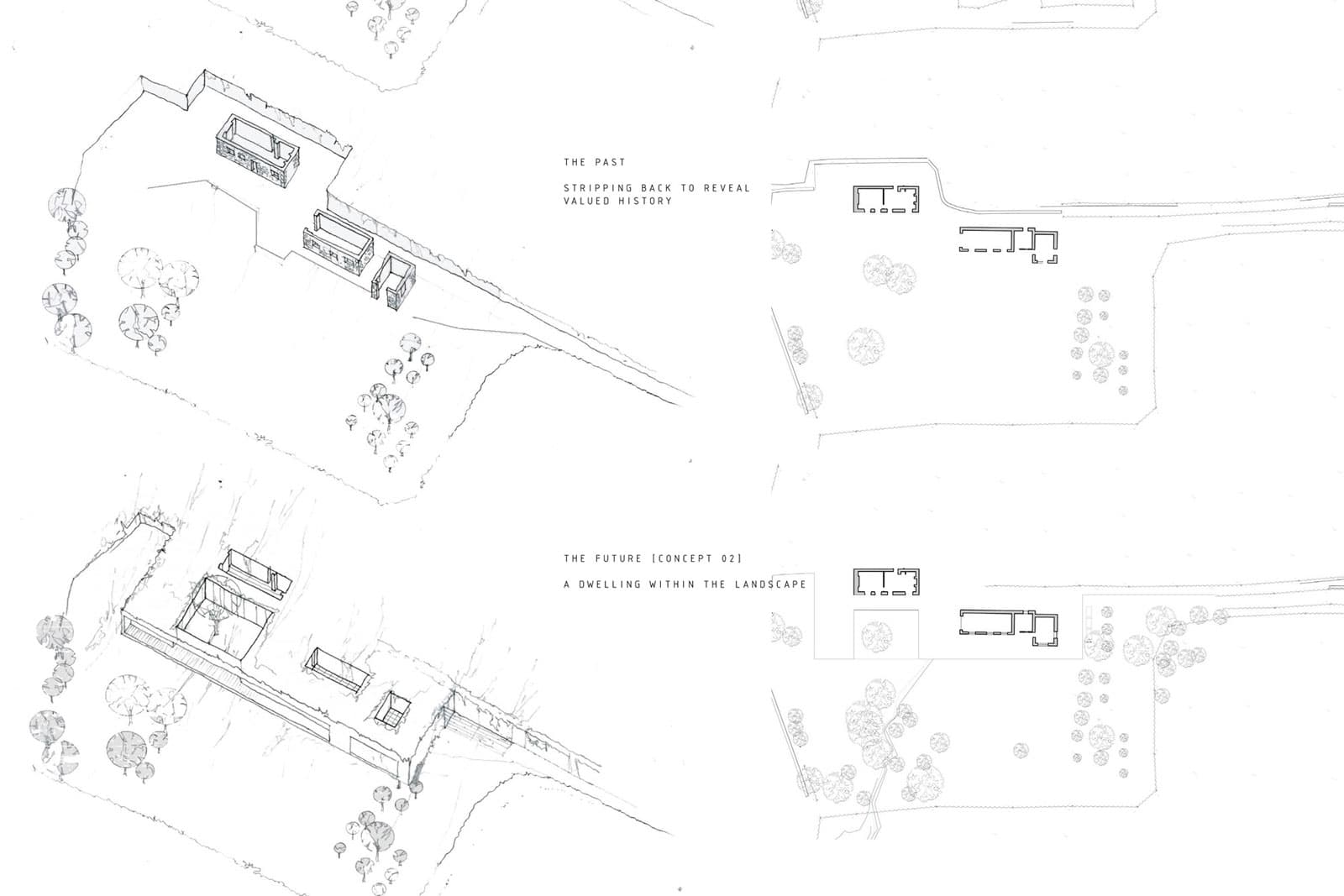

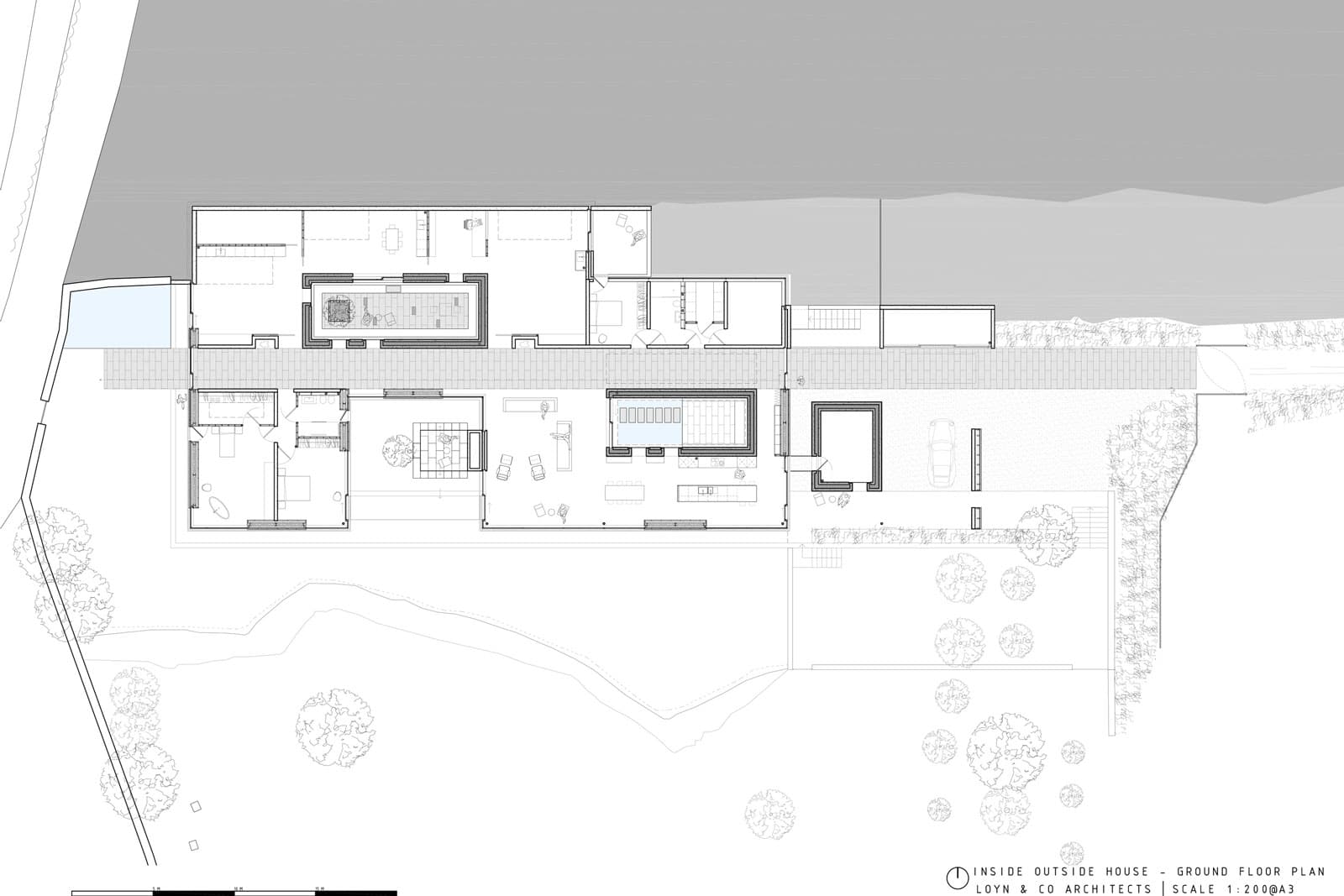

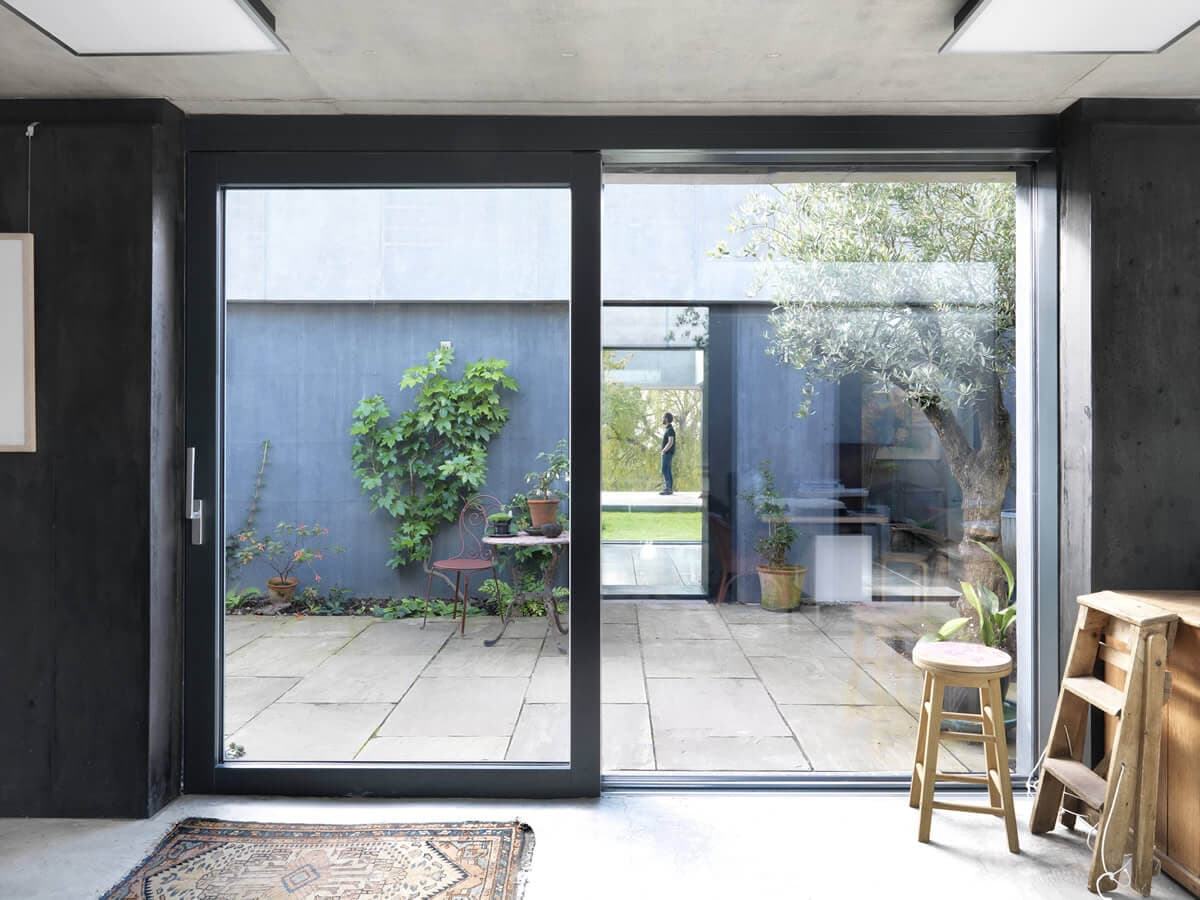

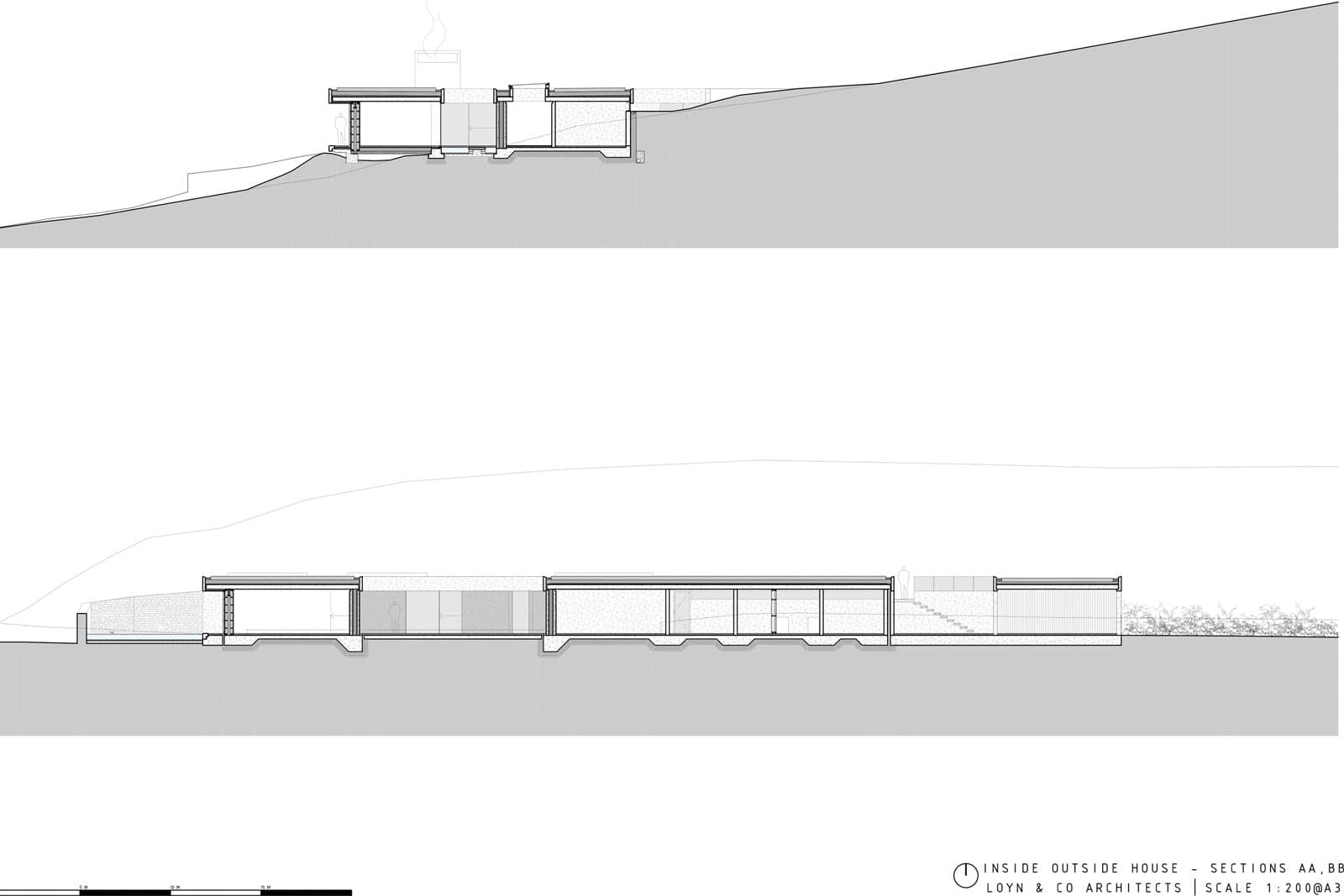

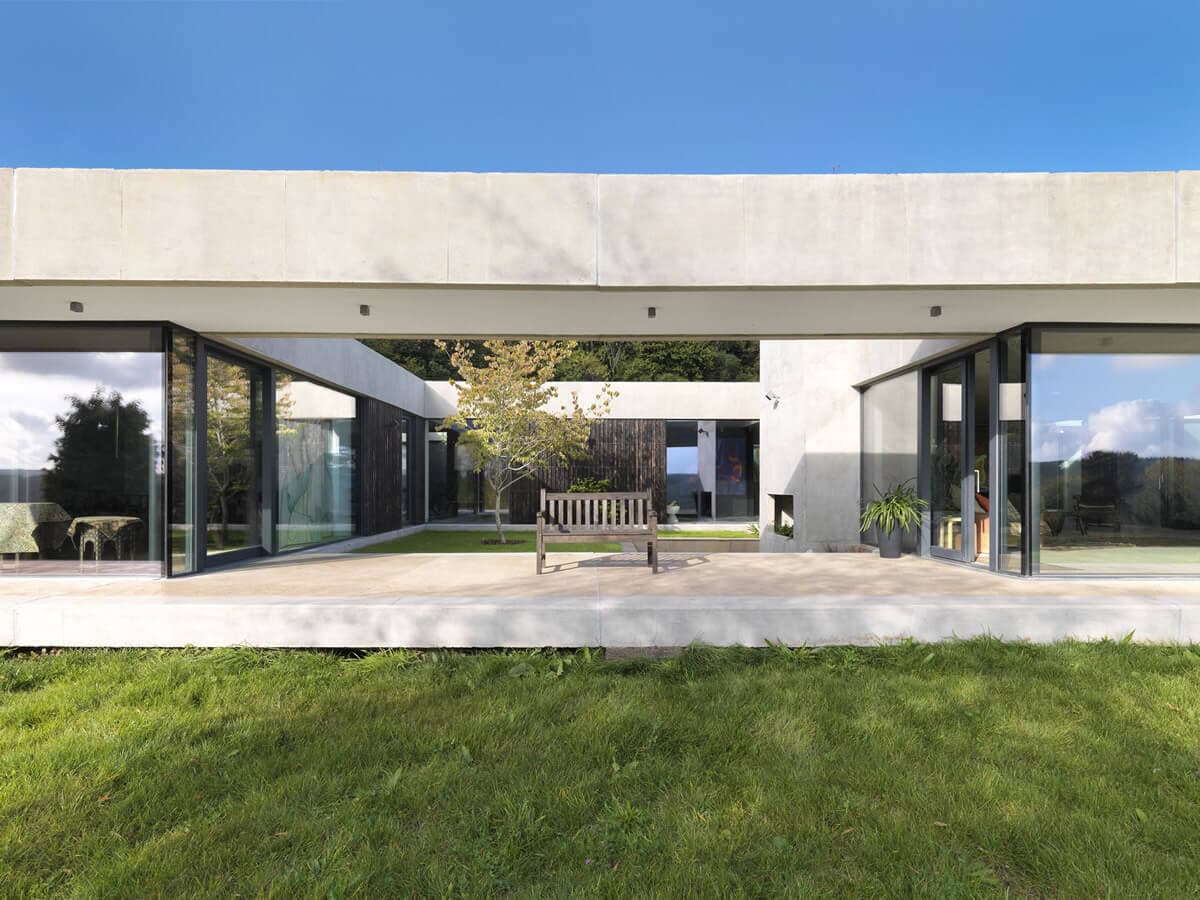

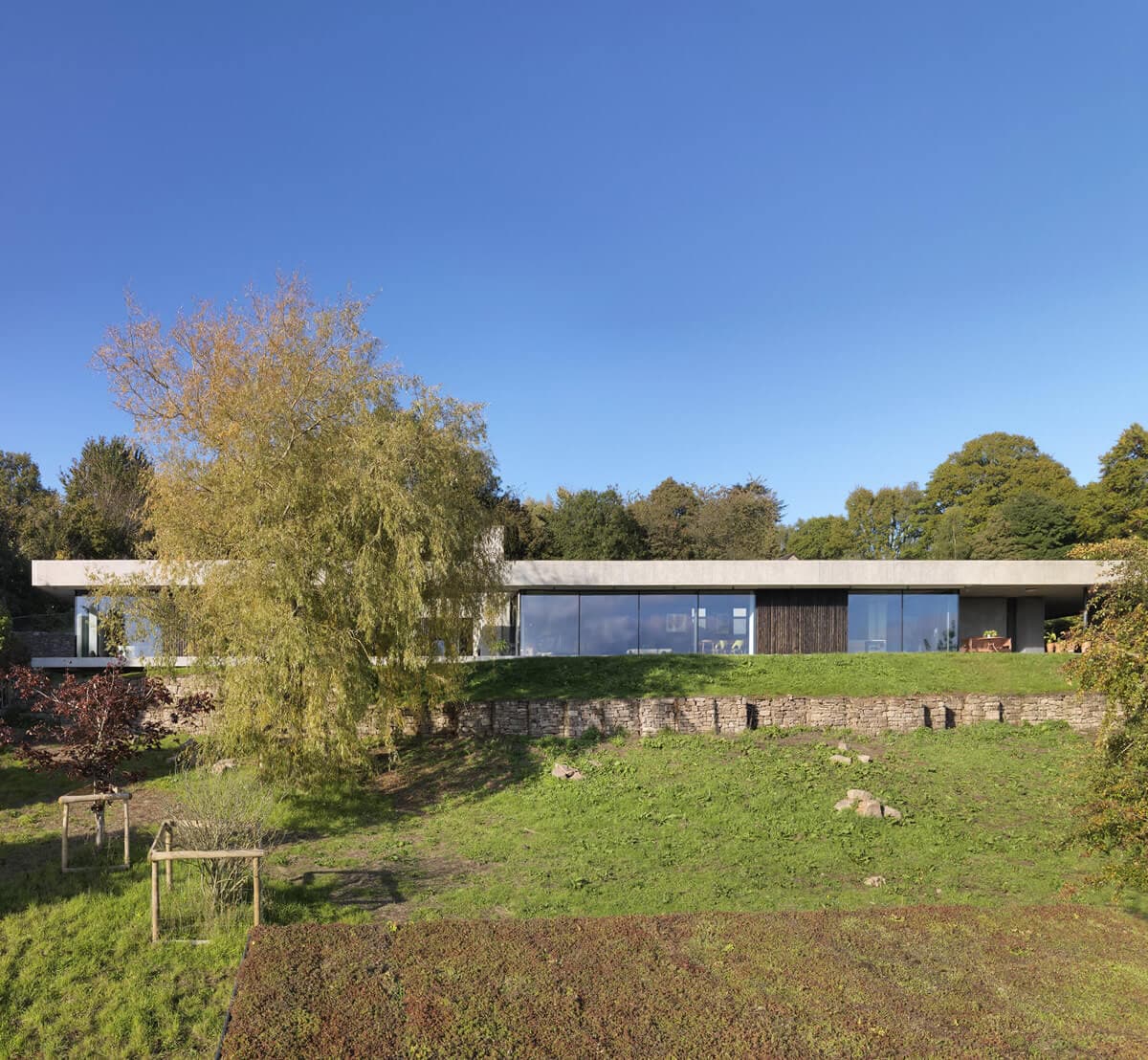

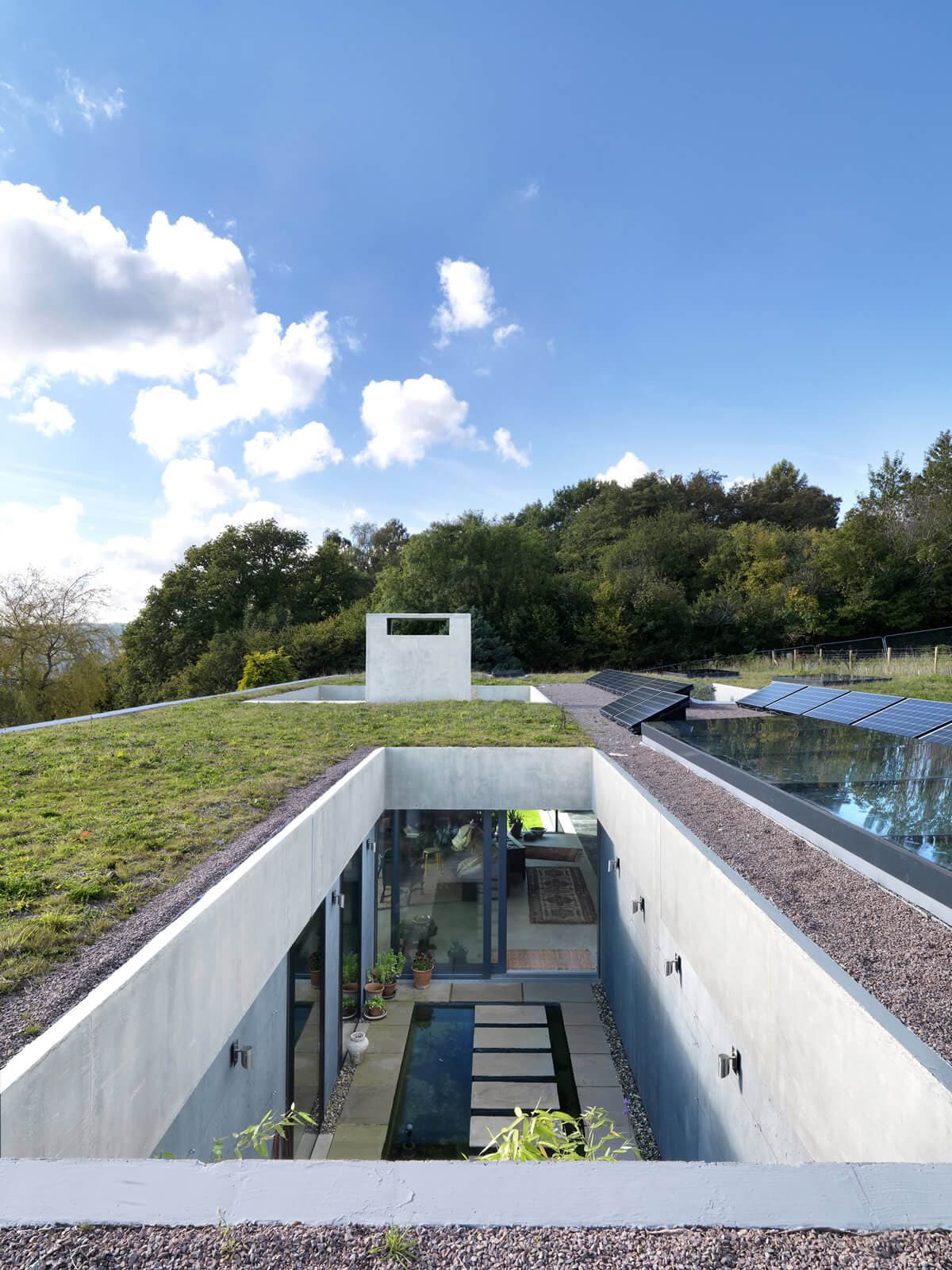

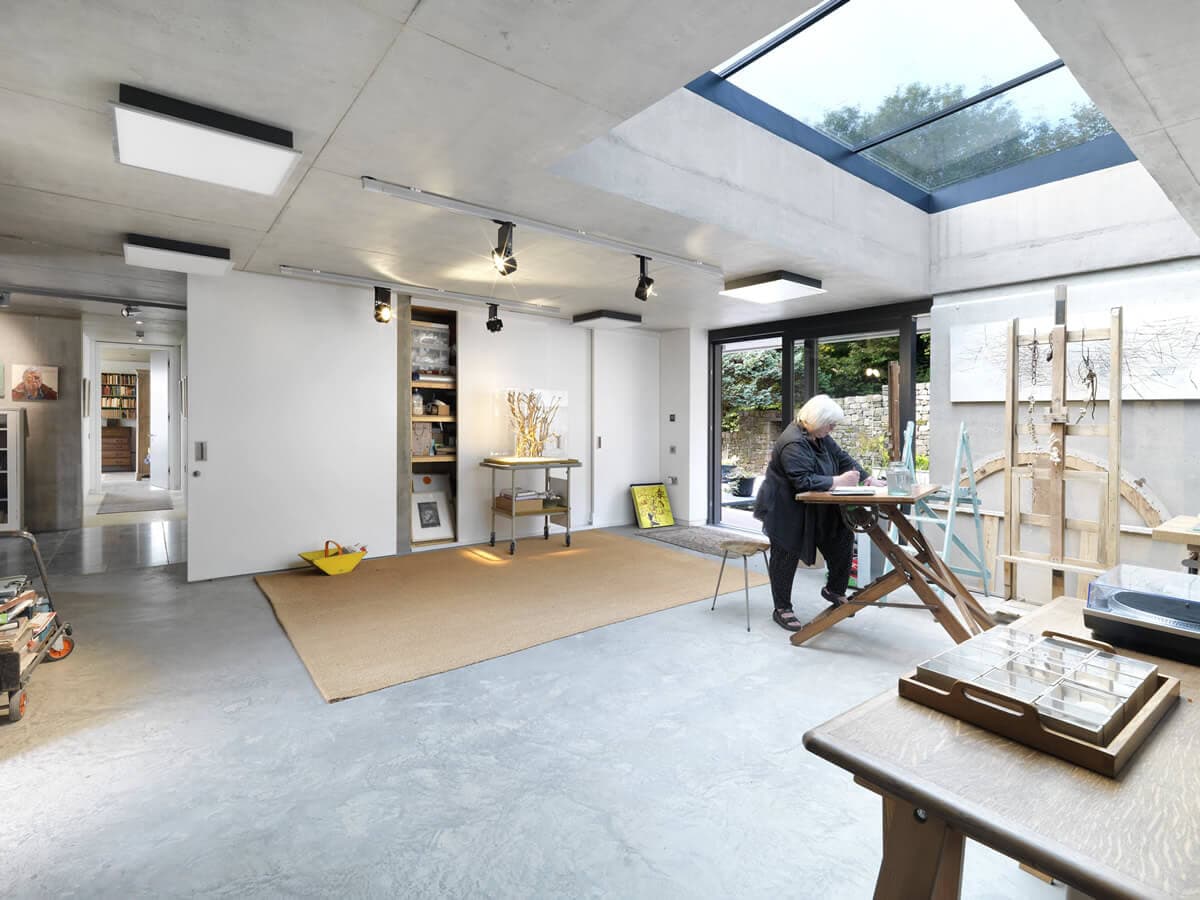

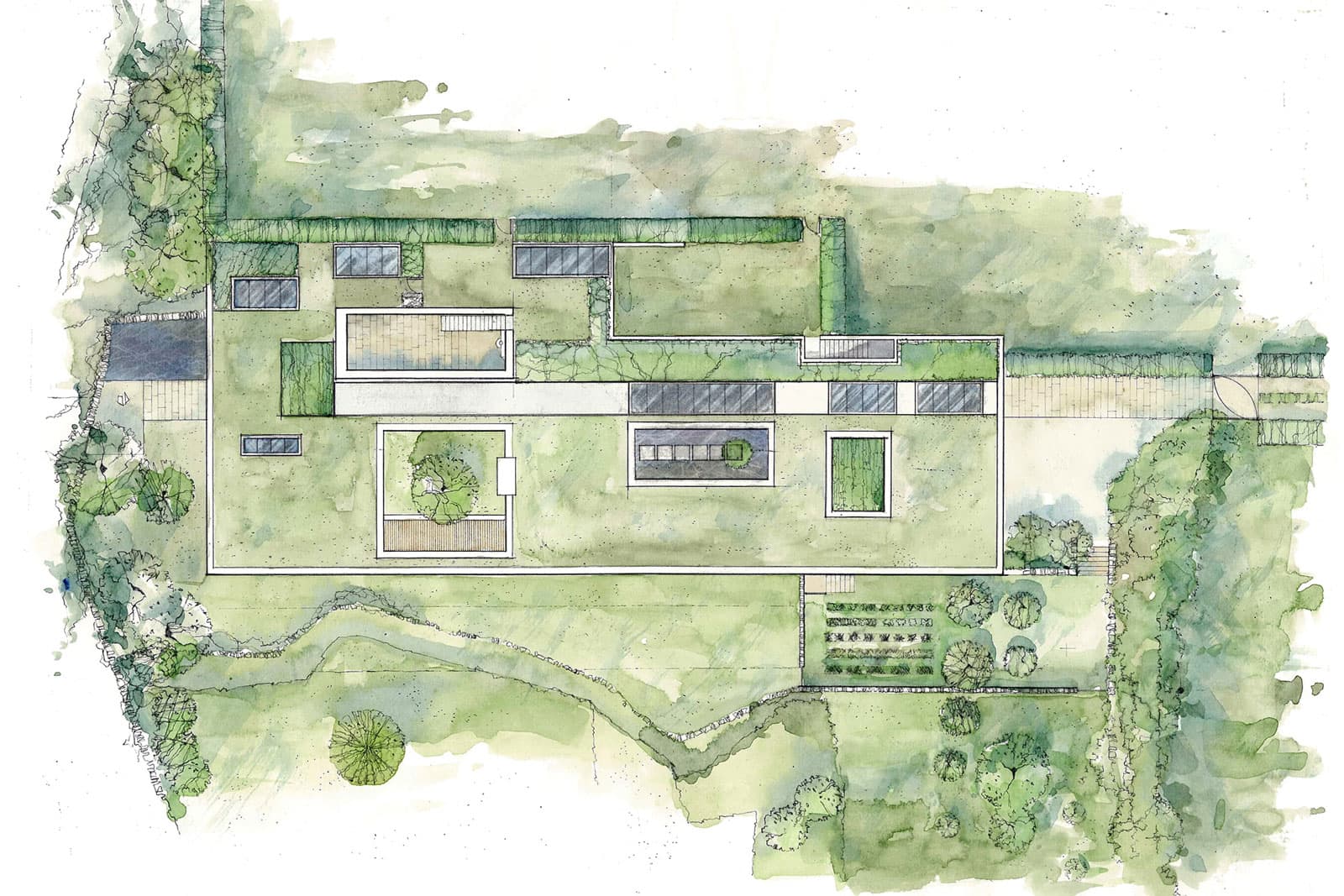

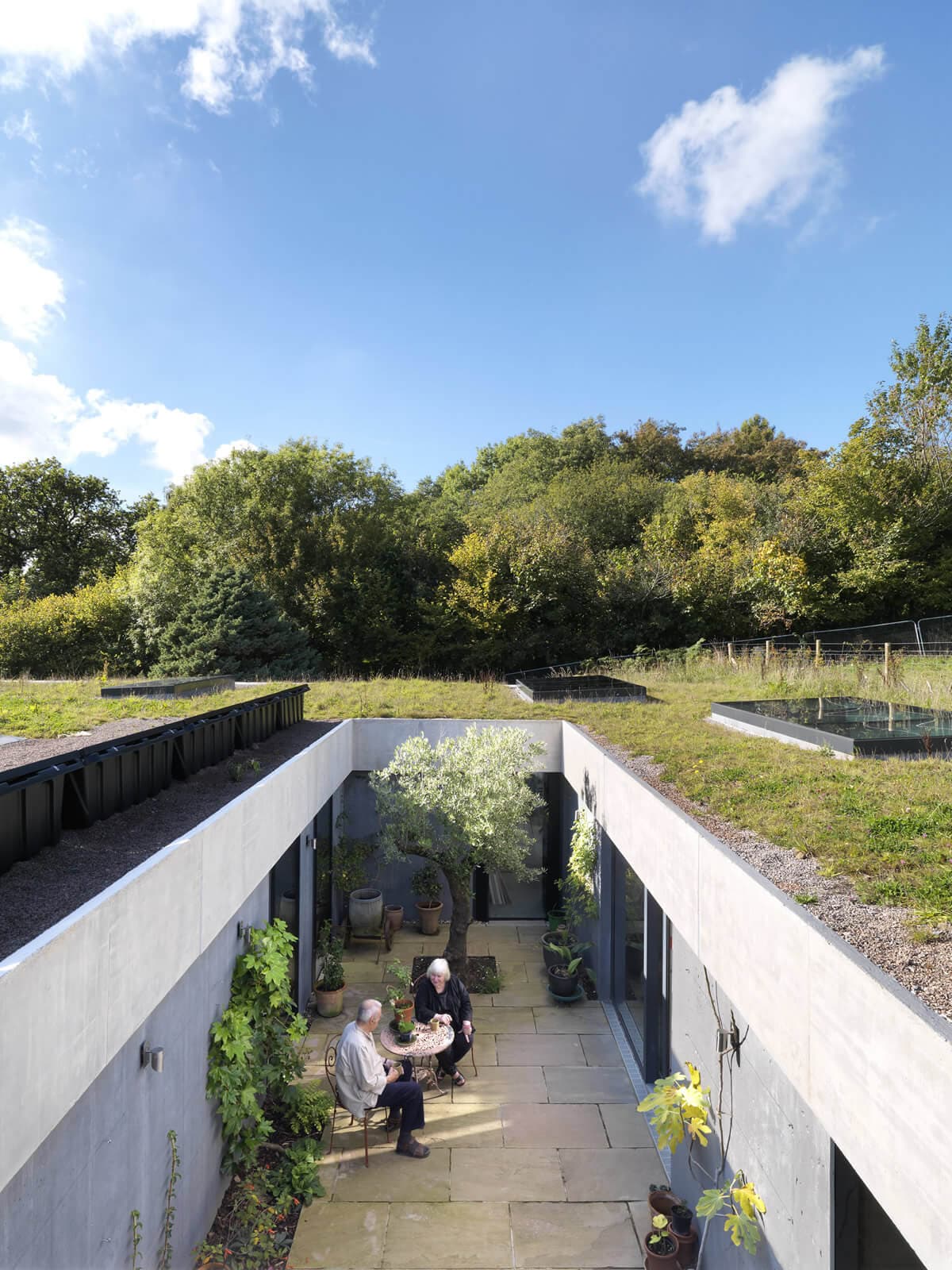

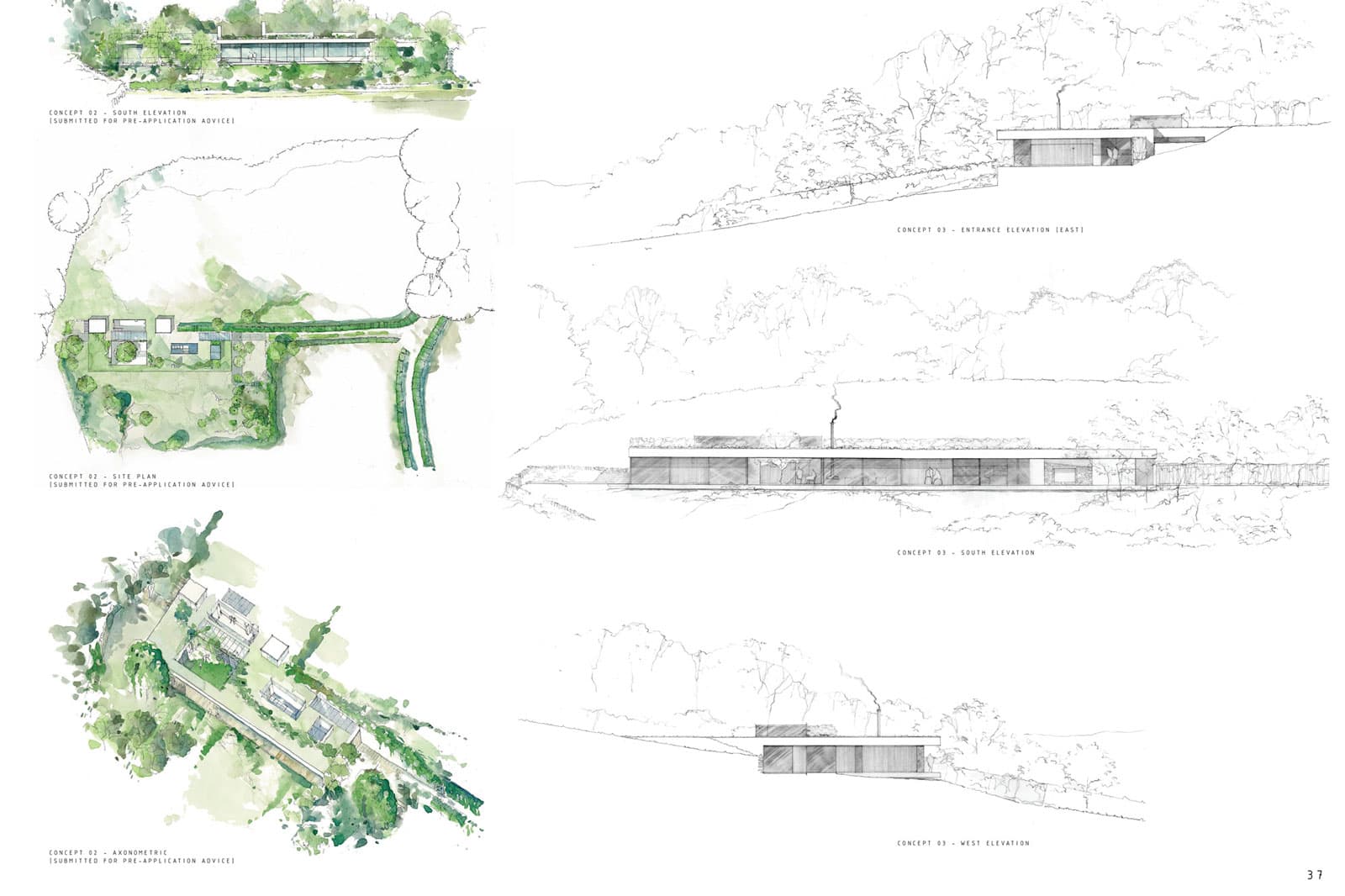

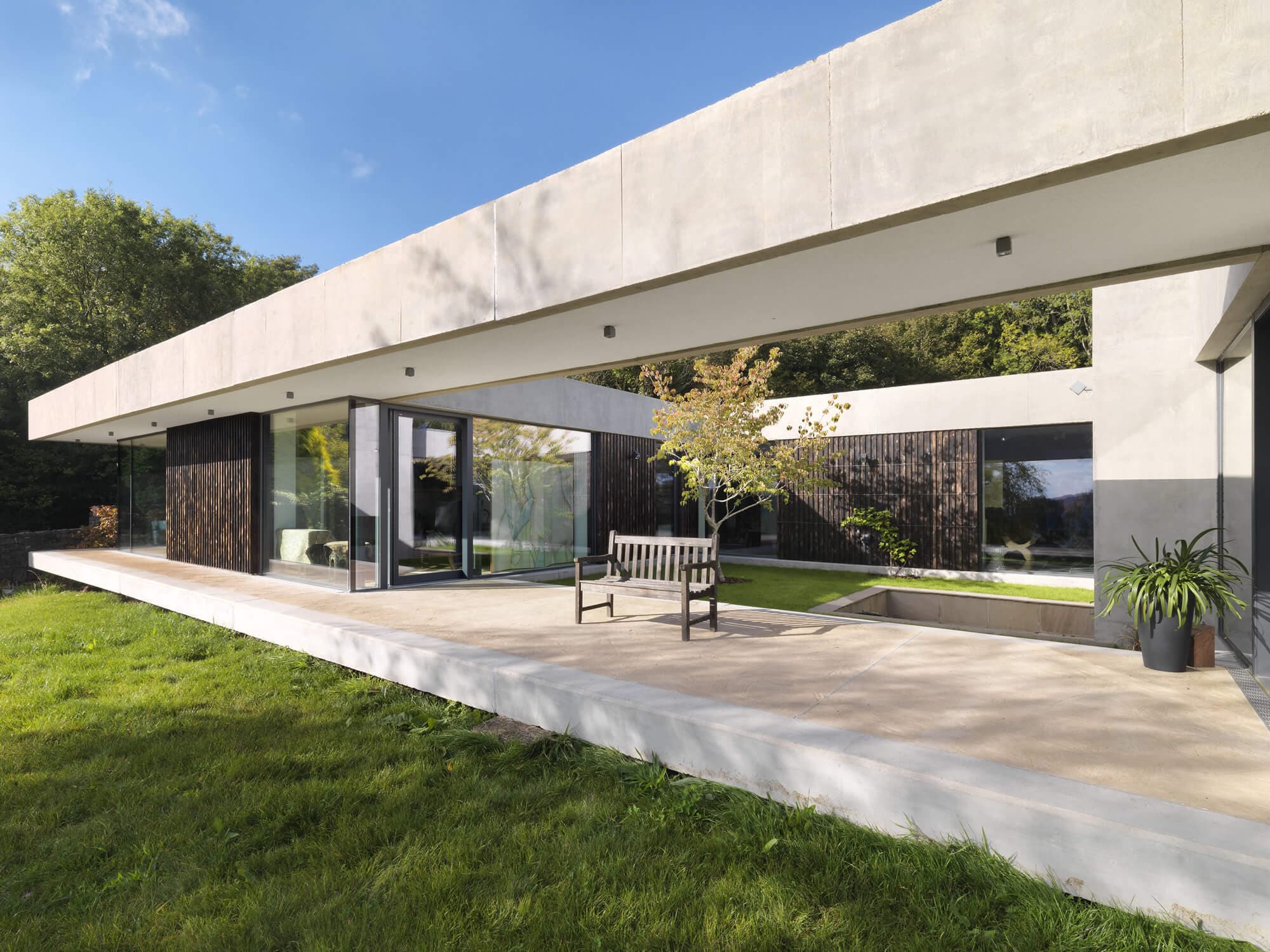

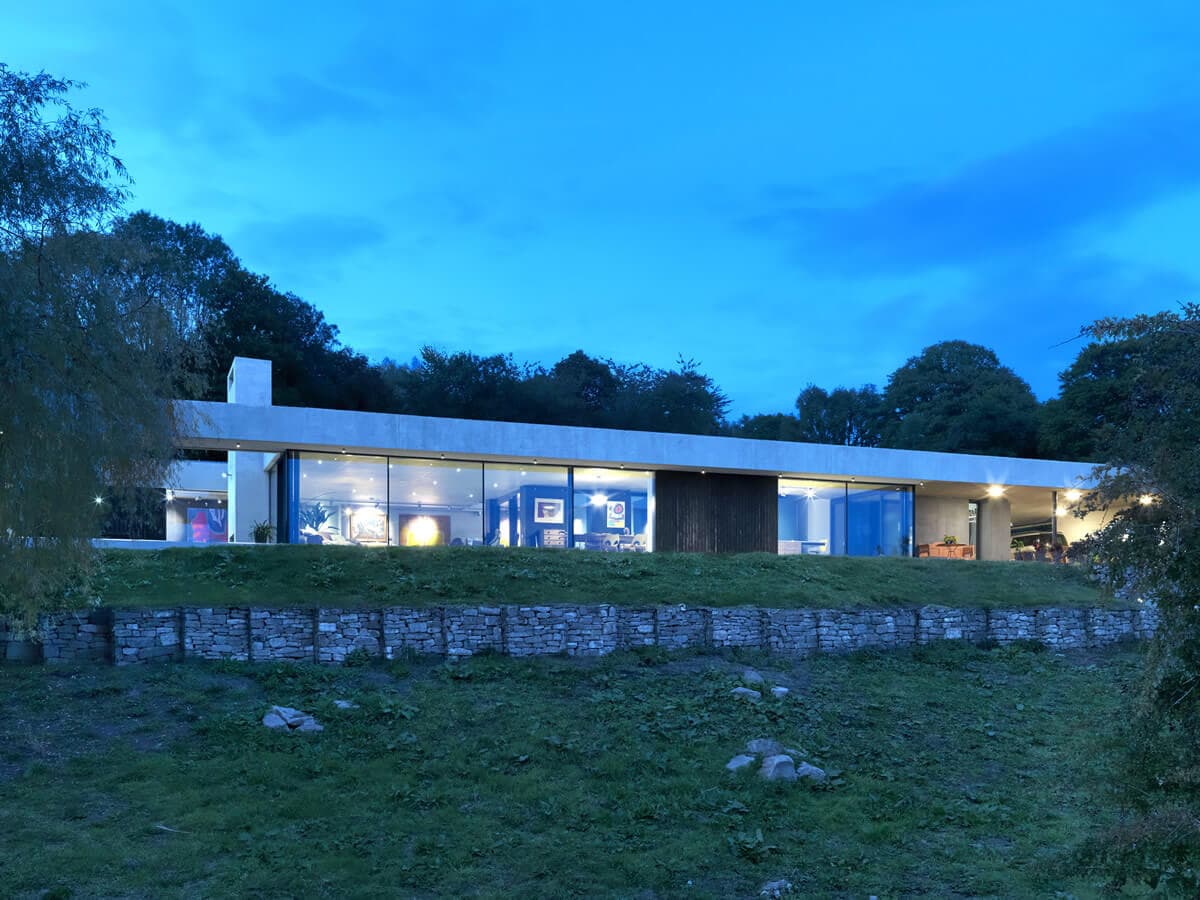

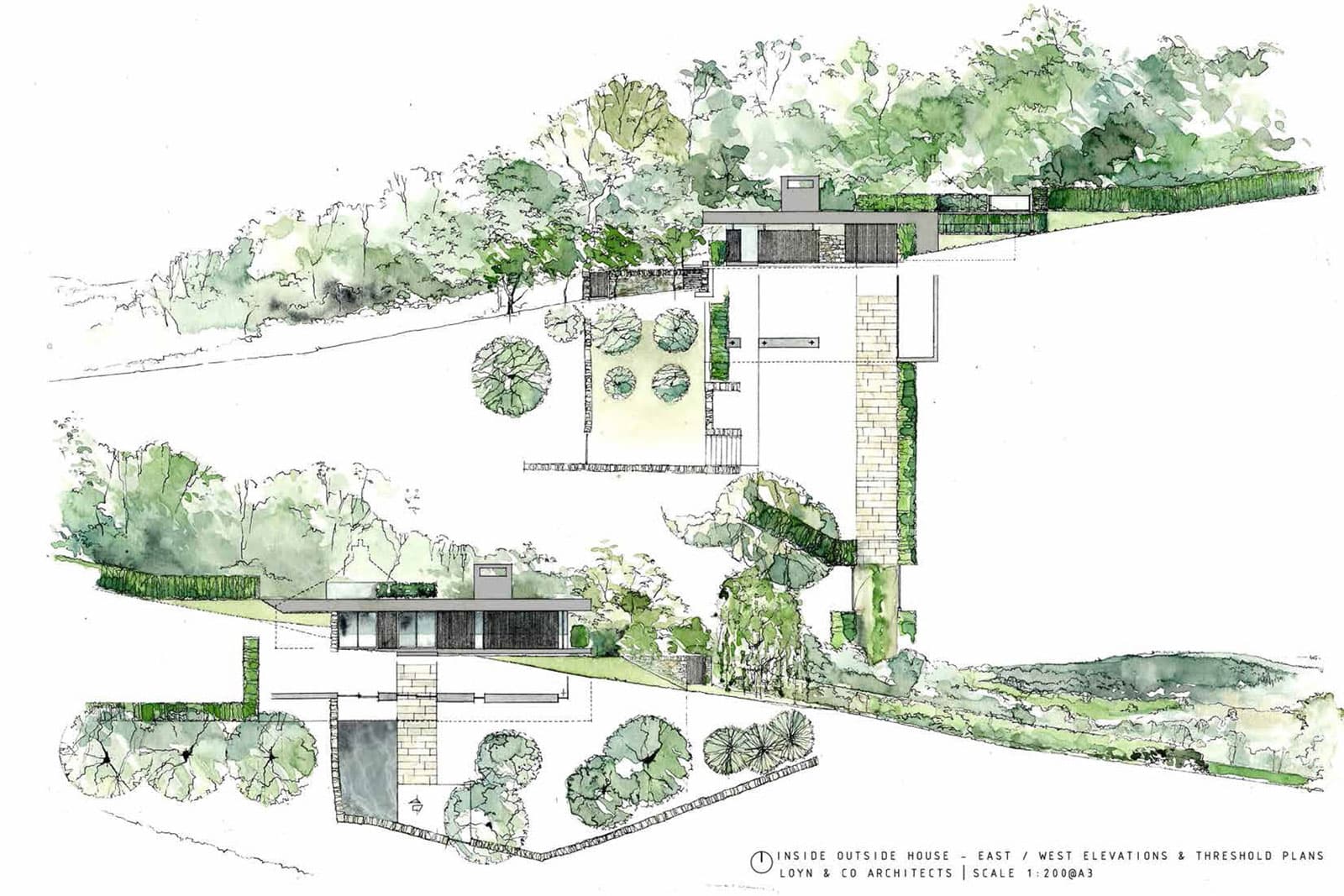

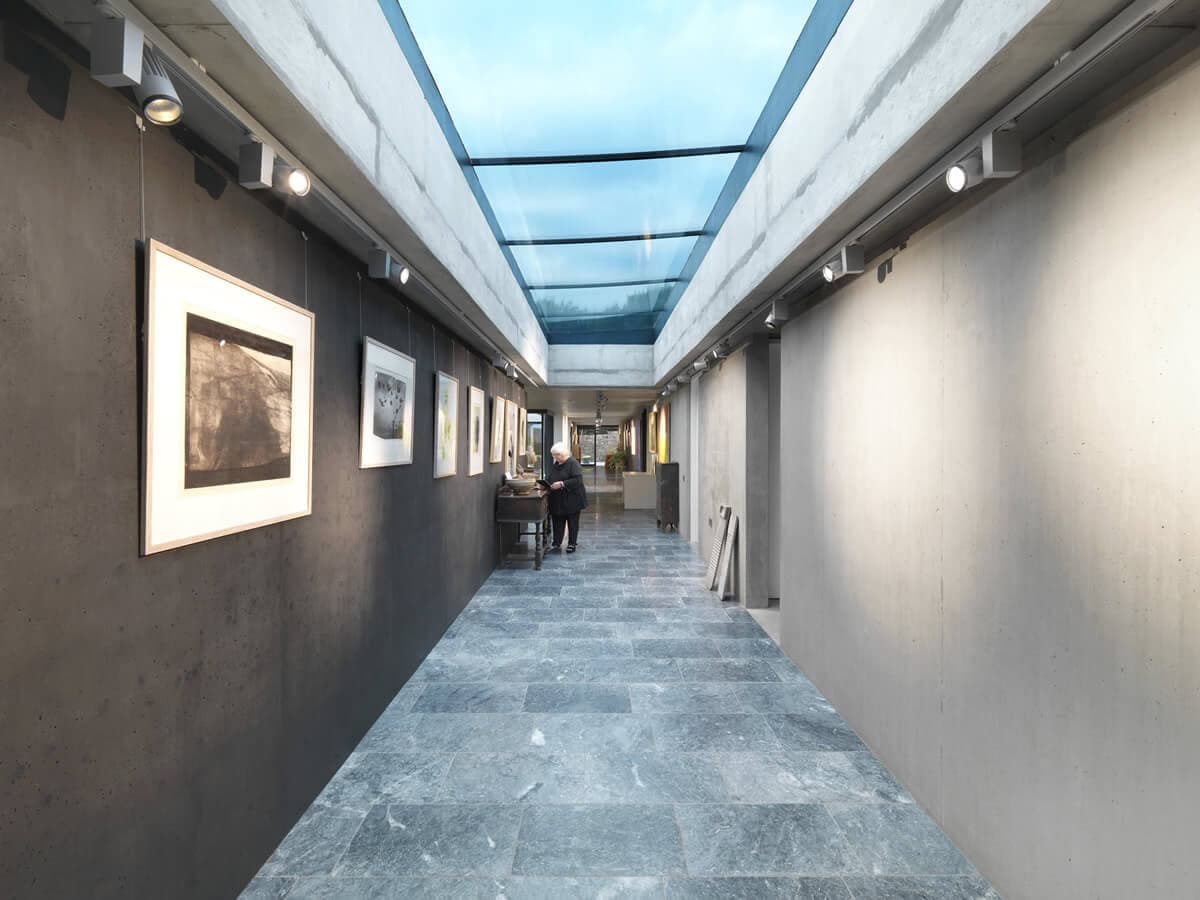

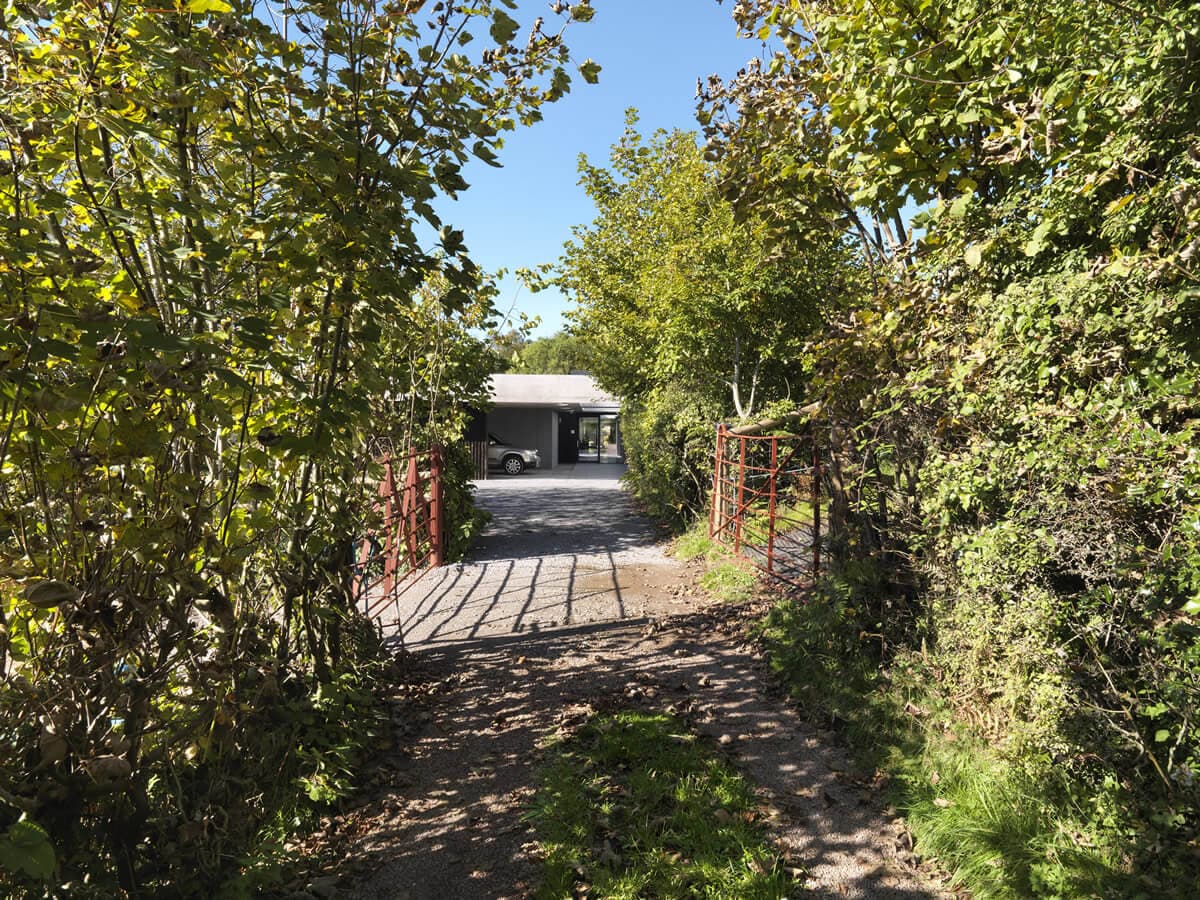

From the outset the surrounding natural environment provided the primary source of inspiration for the proposals. The form of the building is derived from the landscape (the slope, trees, levels and the views) and from the site history. The single storey low lying replacement dwelling is embedded into the site, cut into the slope of the hillside and buried to create an earth shelter which is integrated into the landscape. The building layout is organised around a series of external courtyards which ‘trace’ the footprints of the three buildings formerly on the site which have been conserved and converted in the new dwelling from ‘inside’ to ‘outside’ spaces, hence its working title ‘Inside Outside House’. Each courtyard provides a welcome, sheltered space and along with a series of roof lights allows light and air to penetrate deep into the floor plan. A gallery runs from east to west dividing the live from the work, allowing a degree of separation and privacy to the north lit buried artists’ studios. The building is a sensitive albeit pure architectural form, barely visible between the hedgerows that line the entrance track, hidden from view from the north and concealed within the existing site plateau and topography. Whilst the footprint of the new dwelling is significantly increased, its visual impact is considerably reduced.

Outhouse

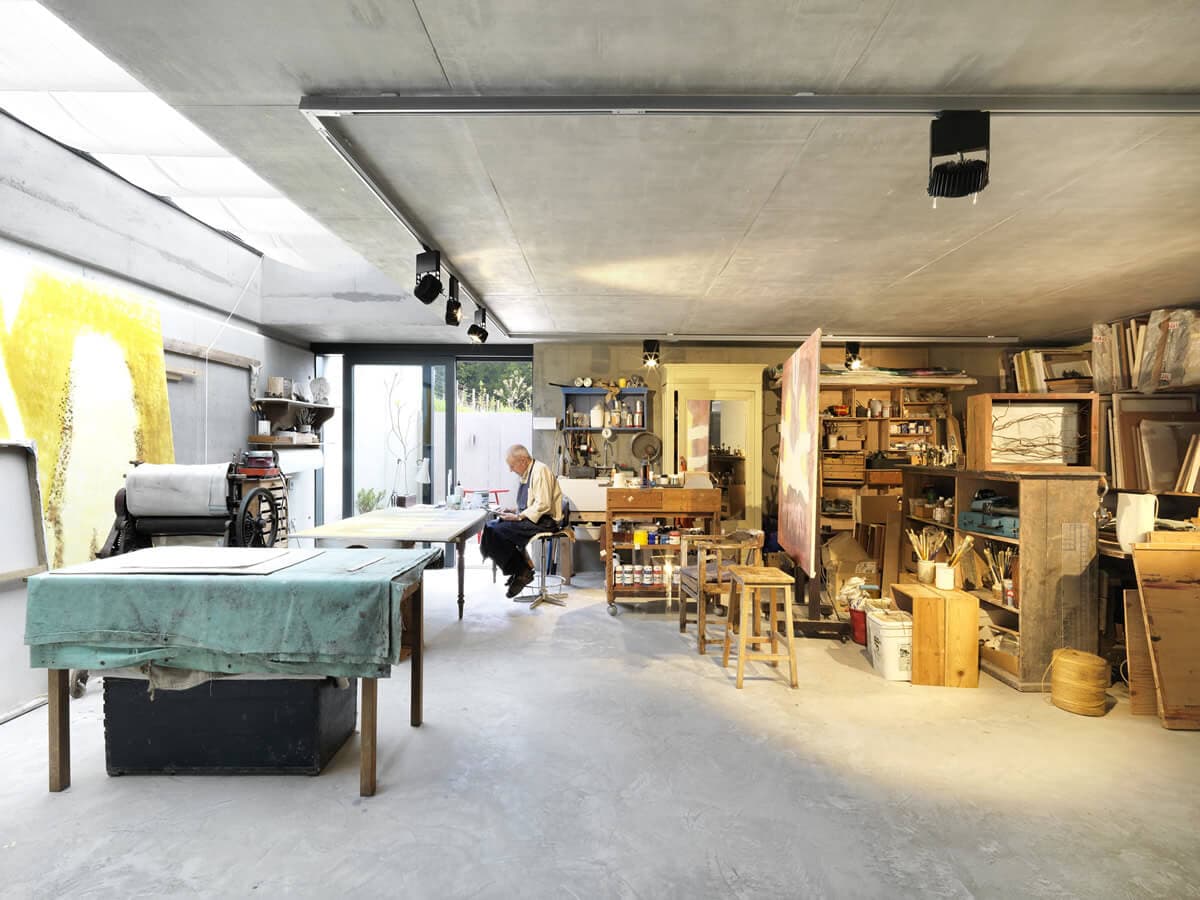

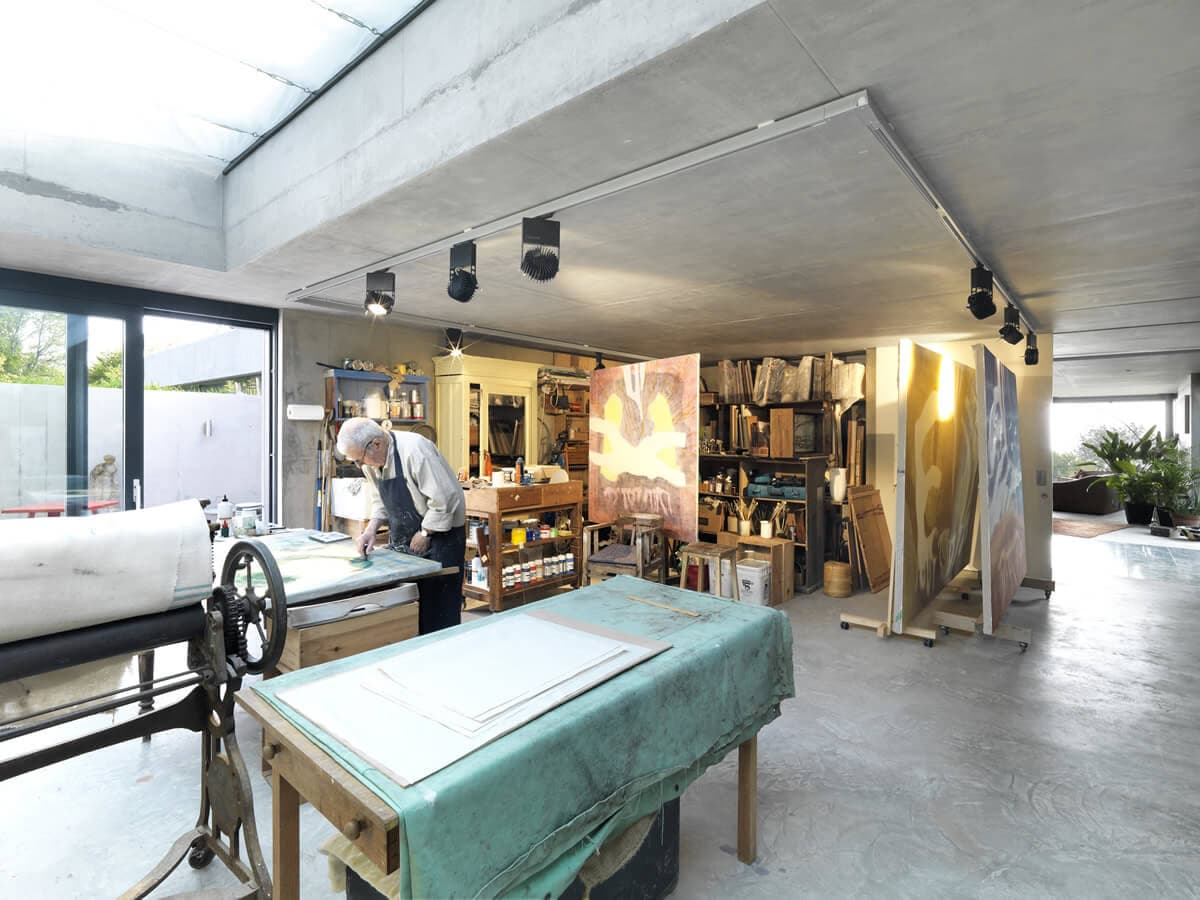

From the bespoke height work tops and cast-in concrete recess for picture hanging to the series of spaces for art making and sculpture, this is a home designed to enrich the lives of its users, to settle and mature within its surrounding landscape and to suggest a new approach to sustainable, site specific, passive design in housing.

The dwelling has an EPC of 96/100 and includes whole house ventilation with ground source heat pump, solar thermal and photovoltaic panels. The house recorded an airtightness of 0.49 h-1@50Pa, well below the threshold for Passivhaus standards. Described in the Architects Journal as ‘one of the most outstanding new houses in Britain in a decade’ Outhouse has received recognition from the public, architectural press and the RIBA including most significantly being included on the shortlist for the Stirling Prize 2016.

Outhouse

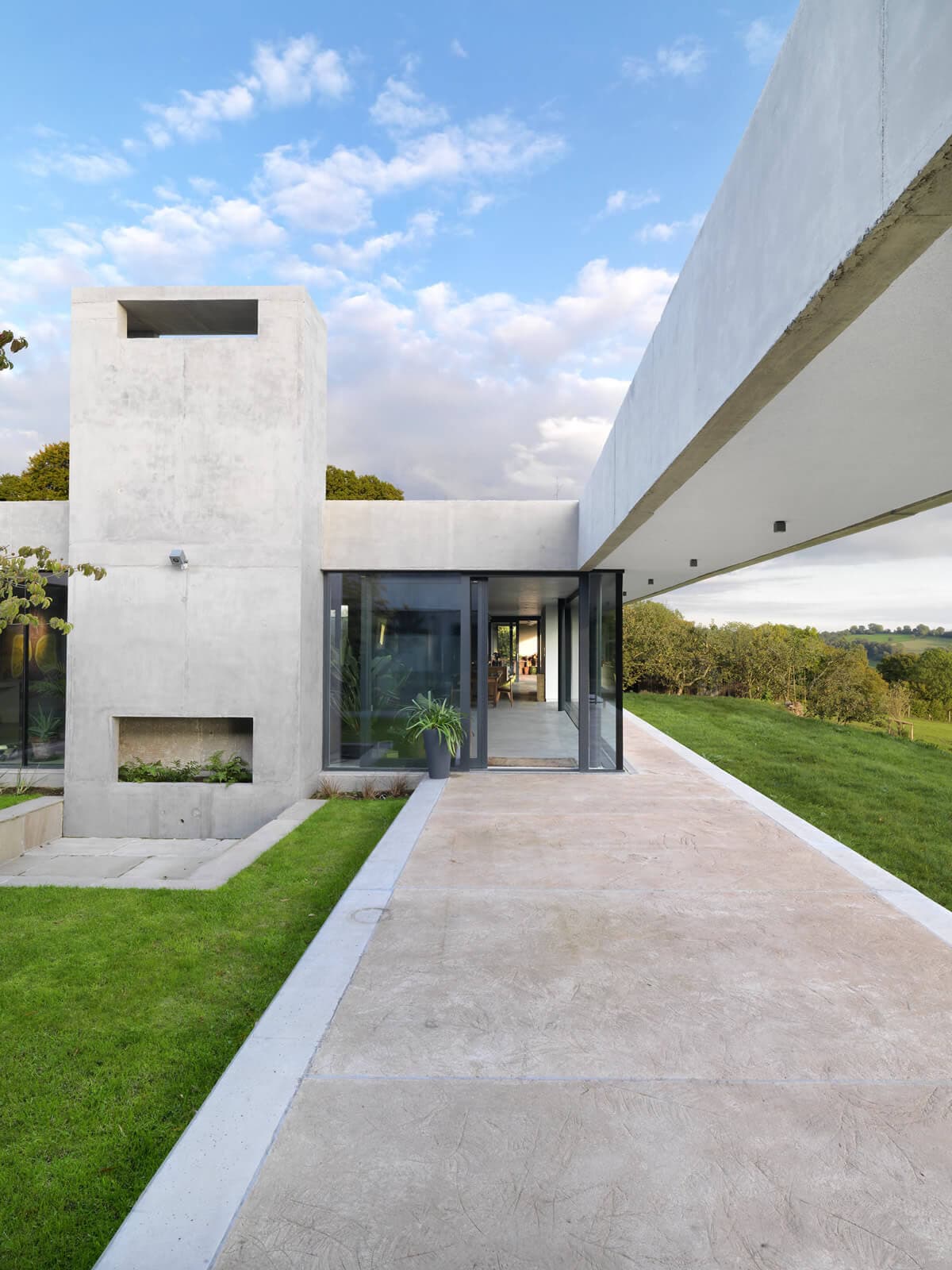

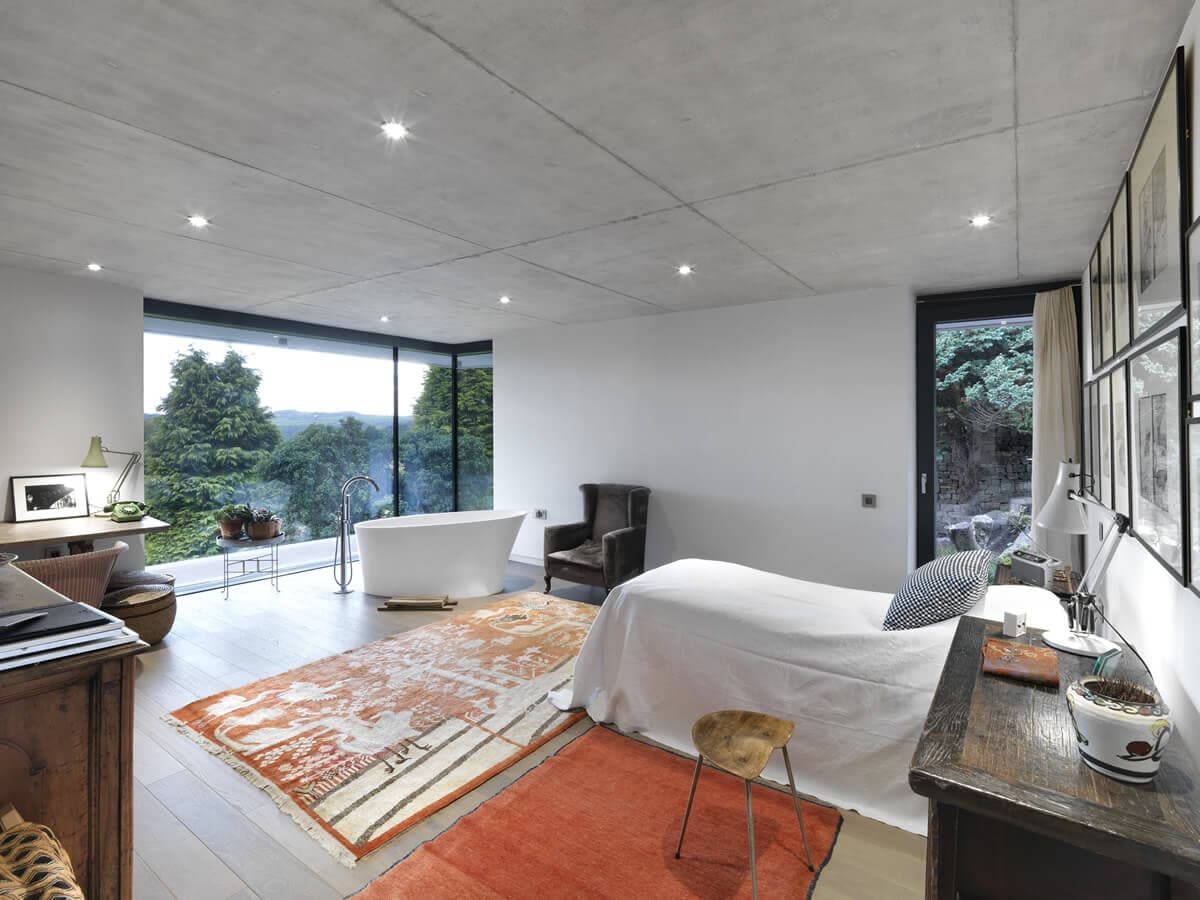

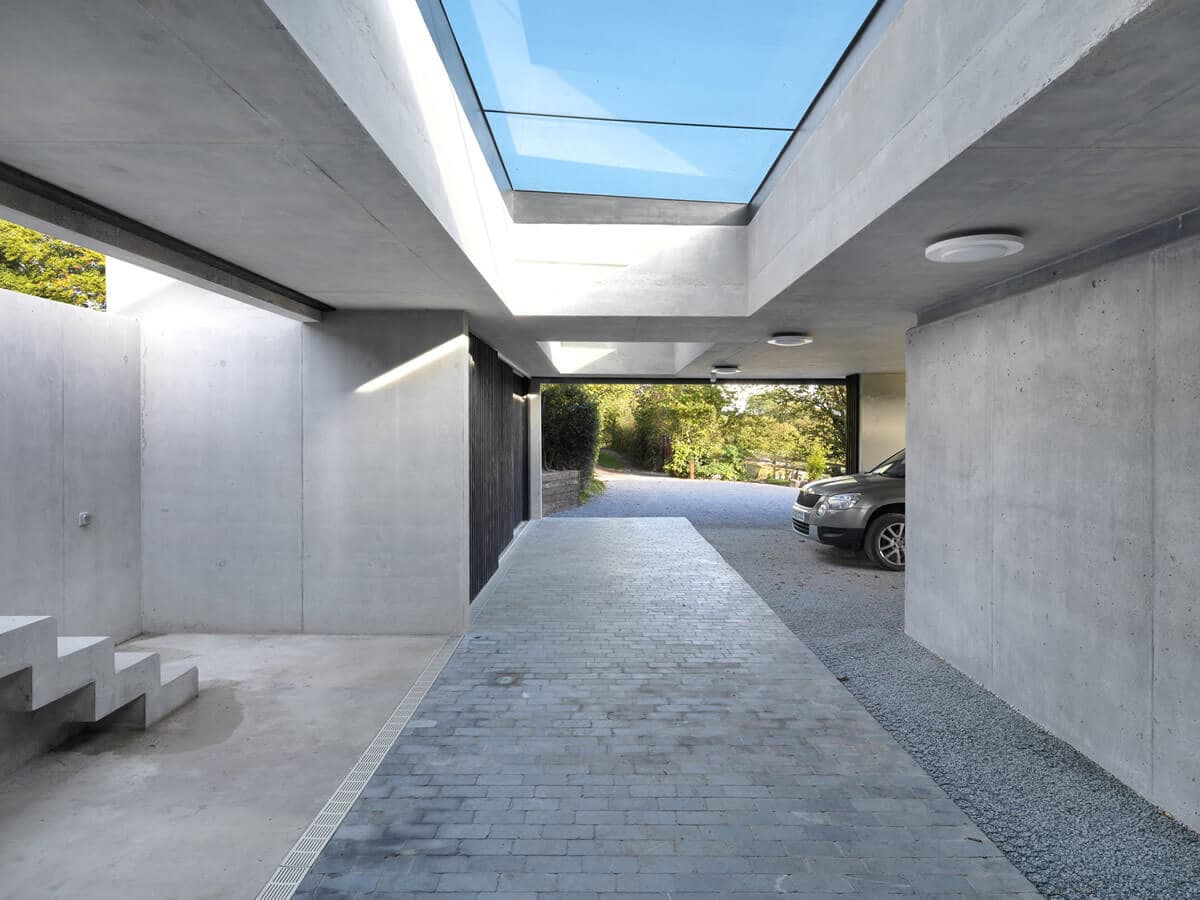

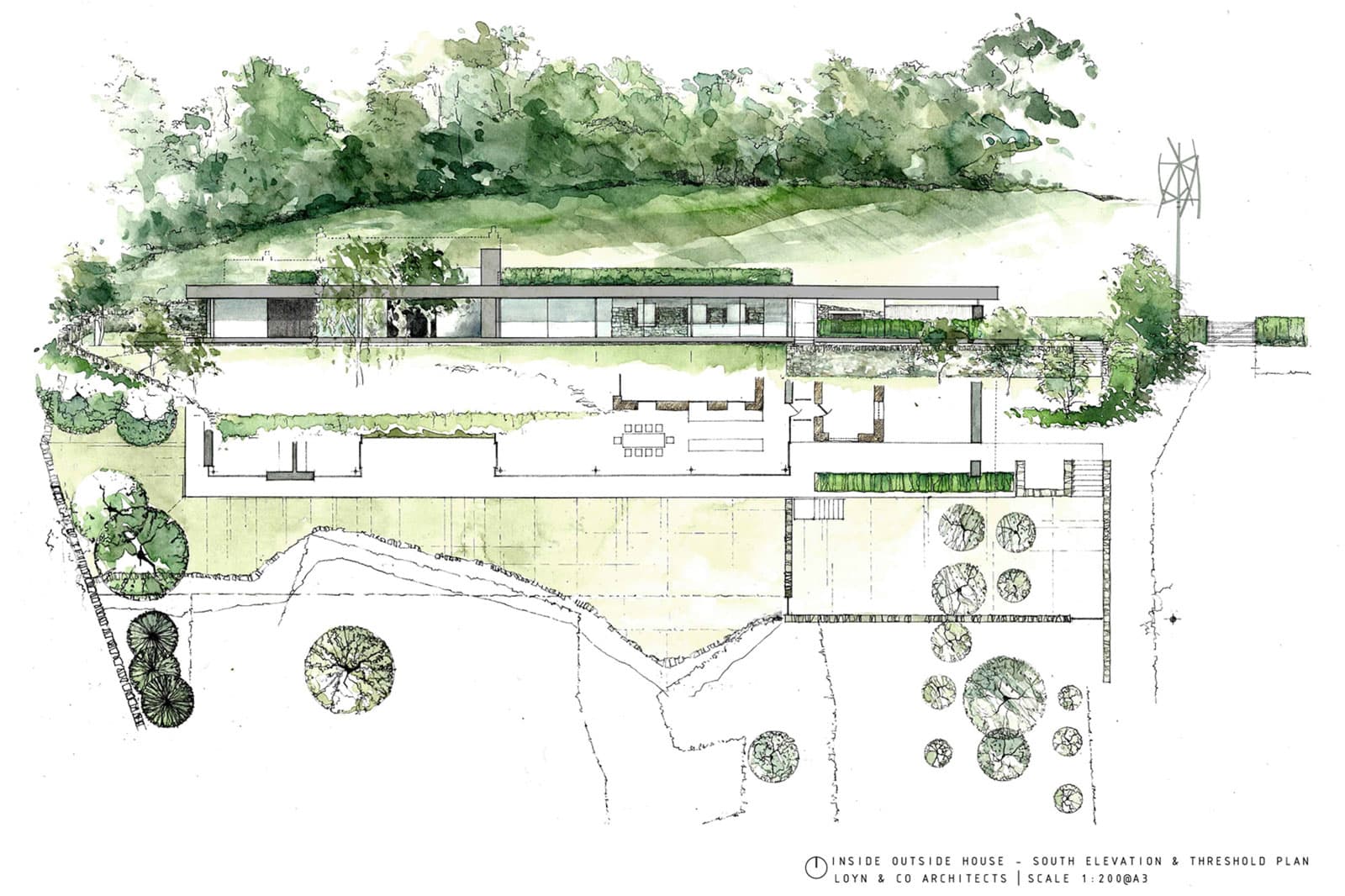

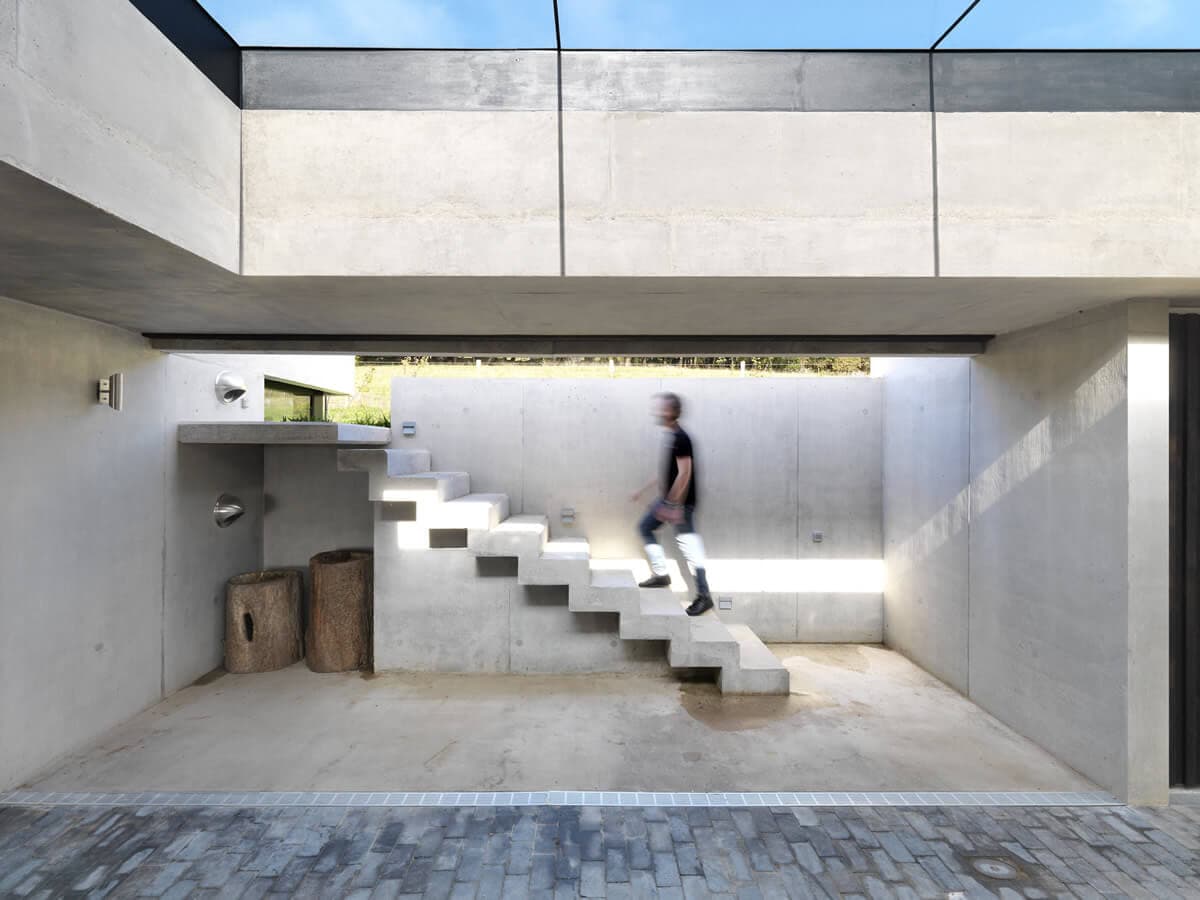

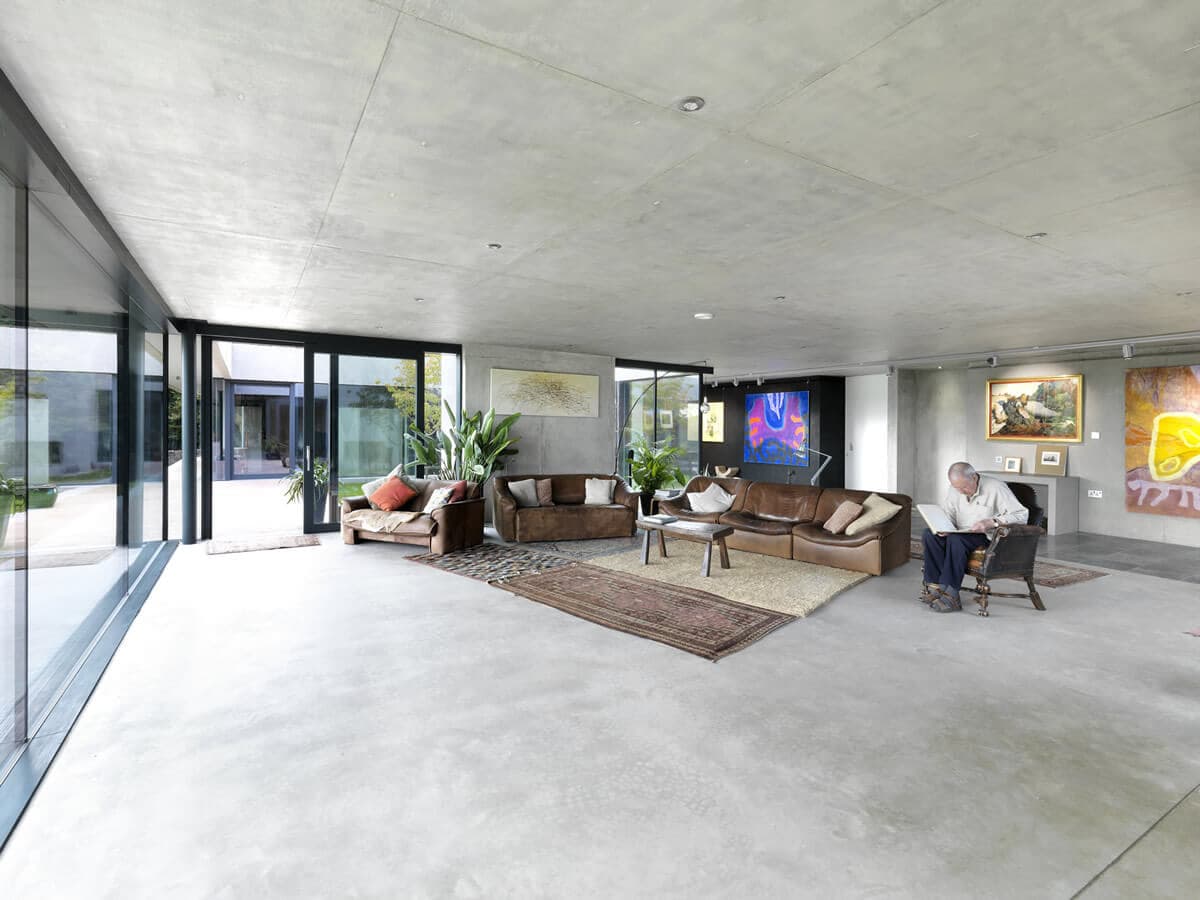

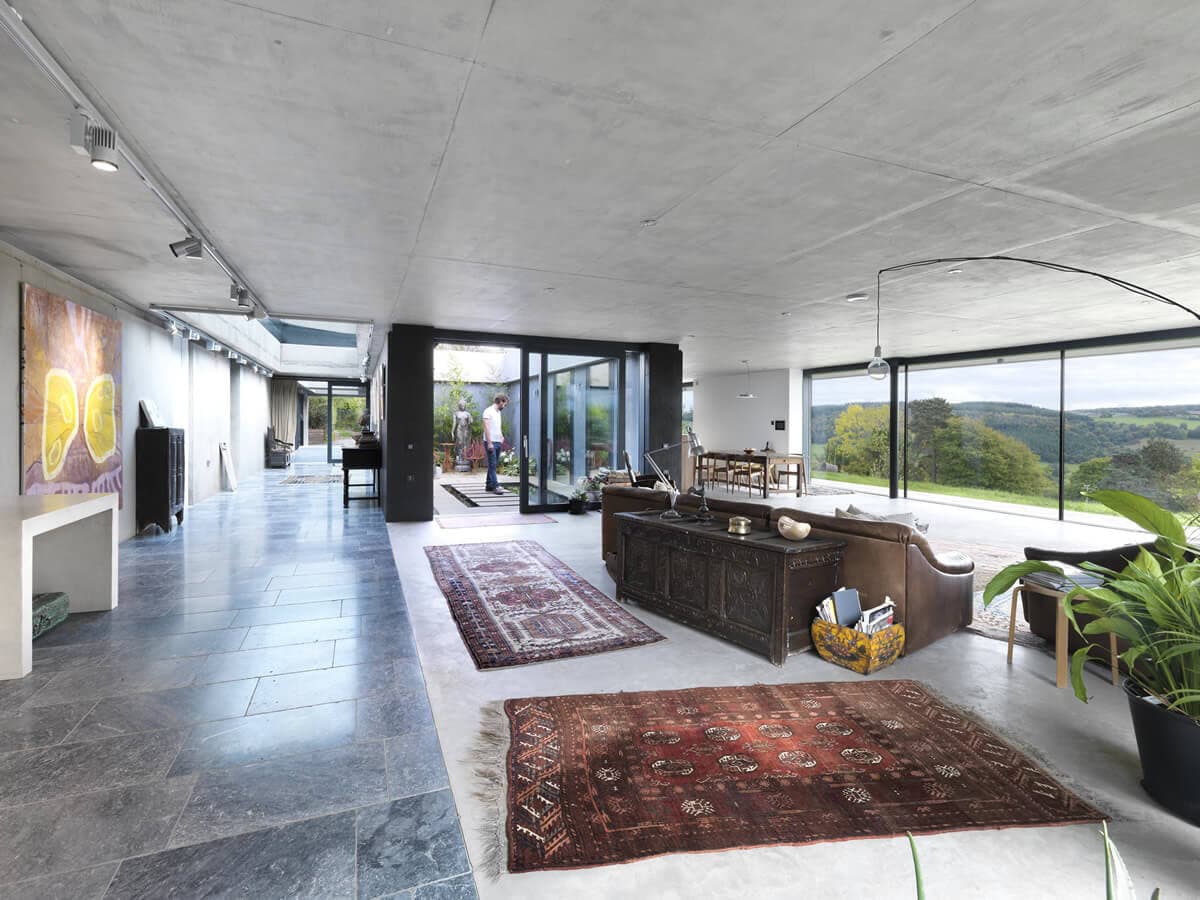

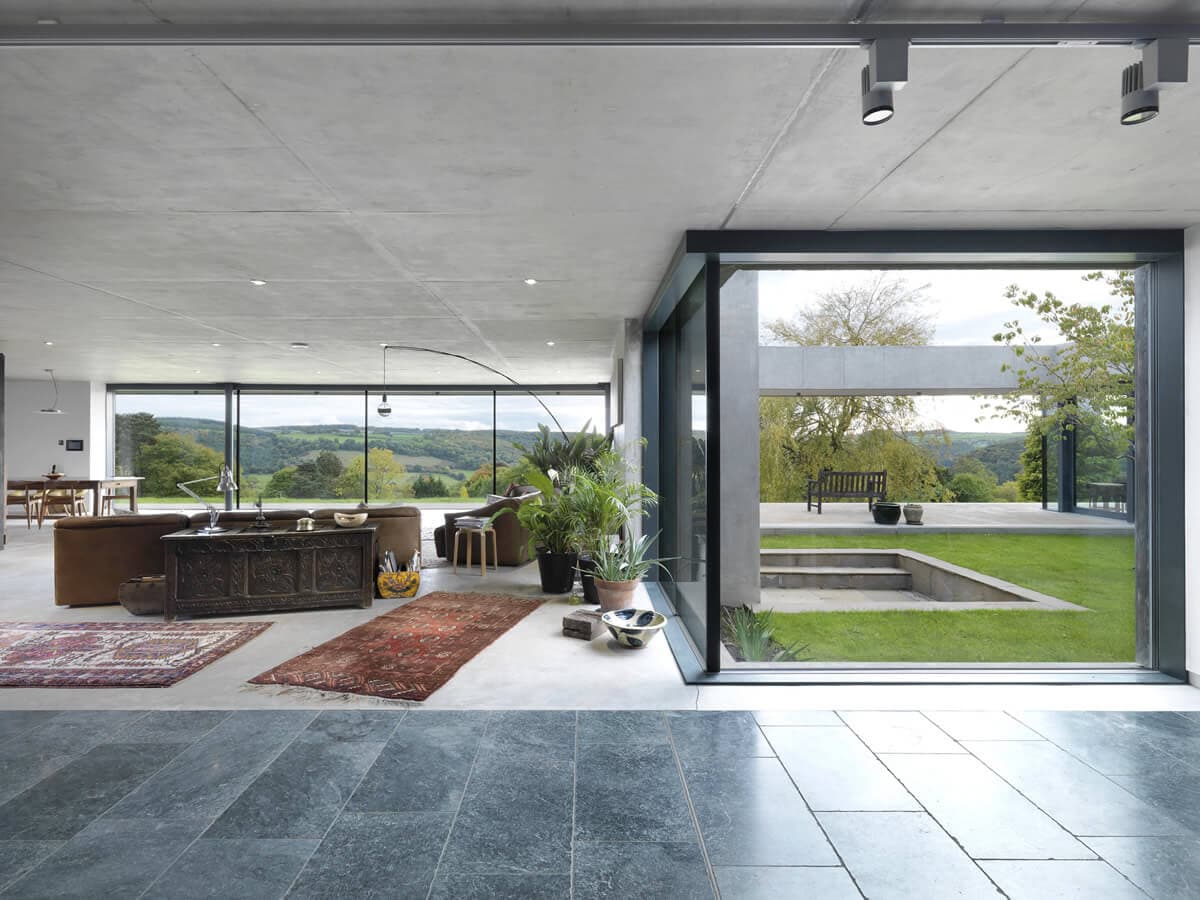

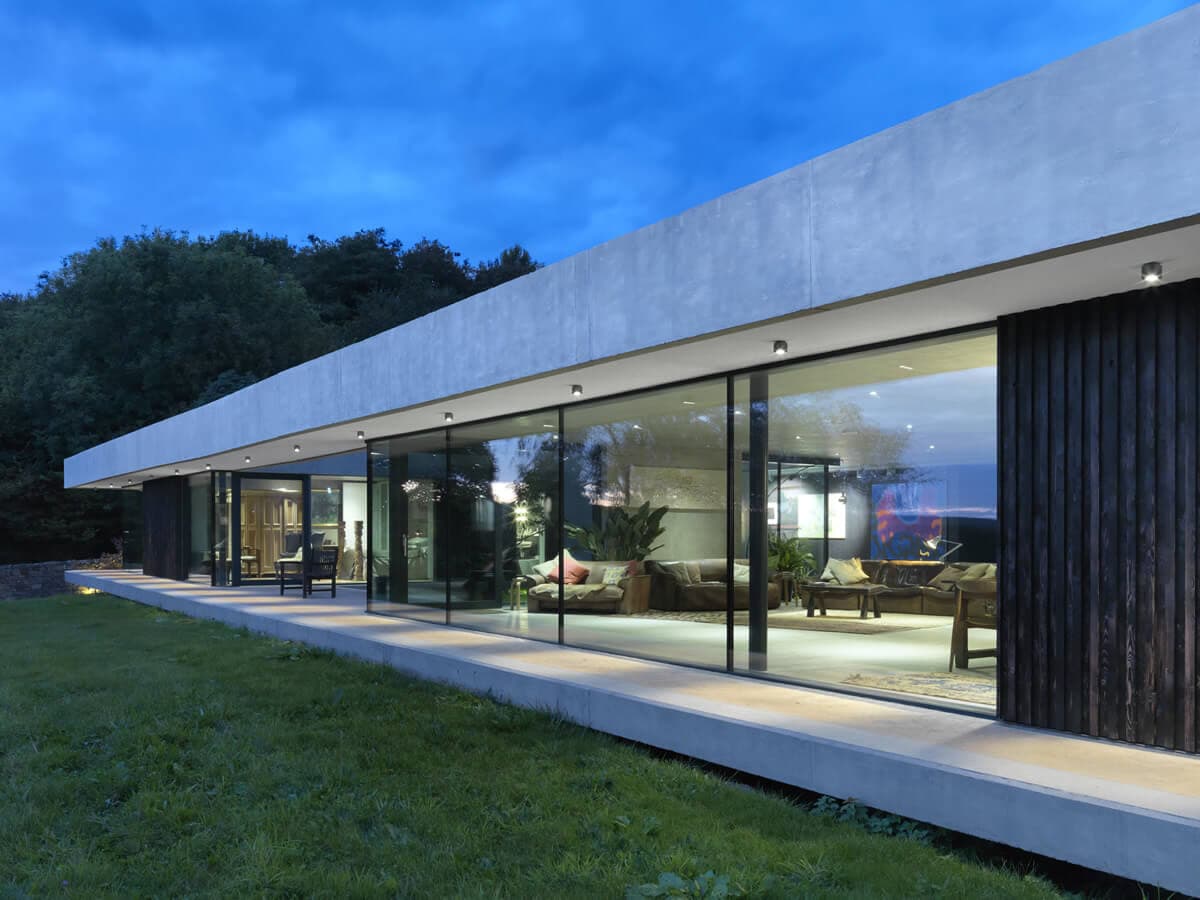

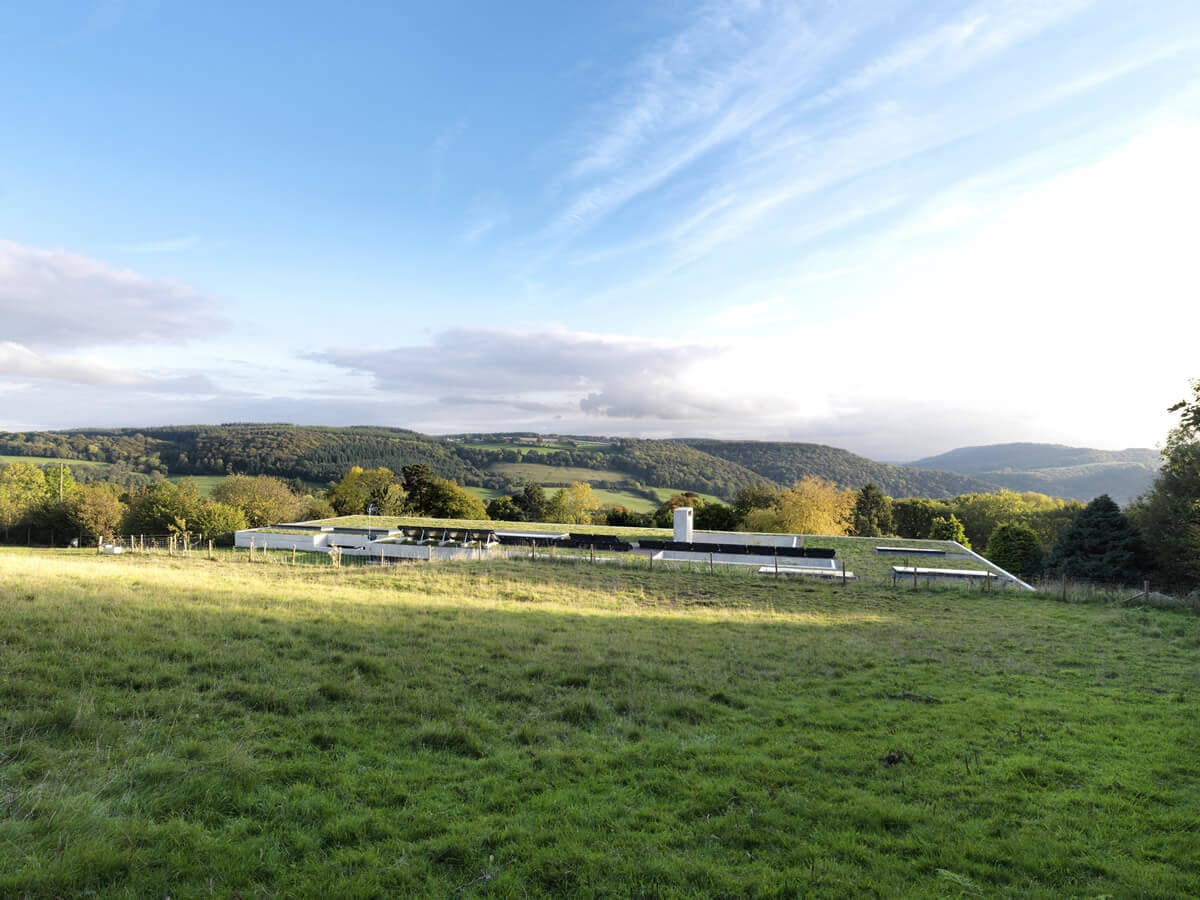

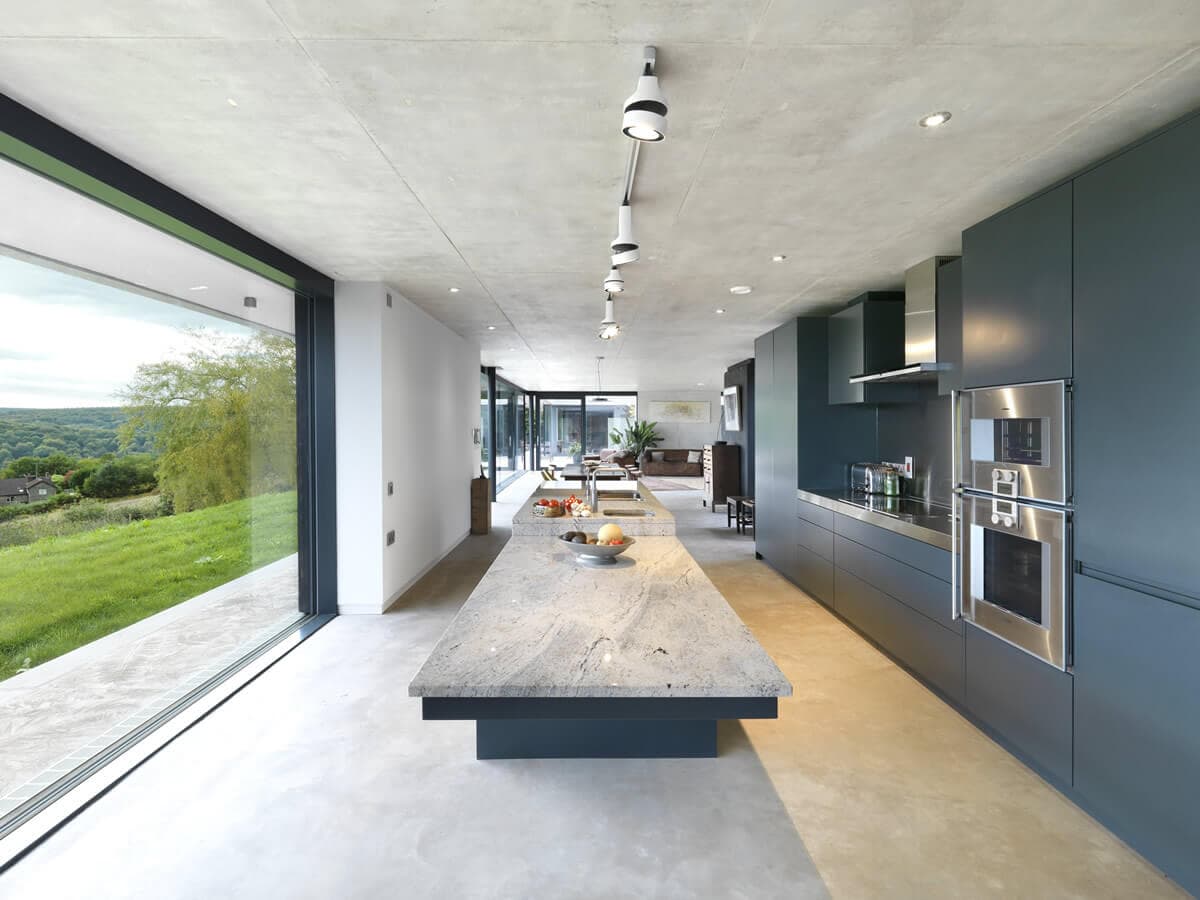

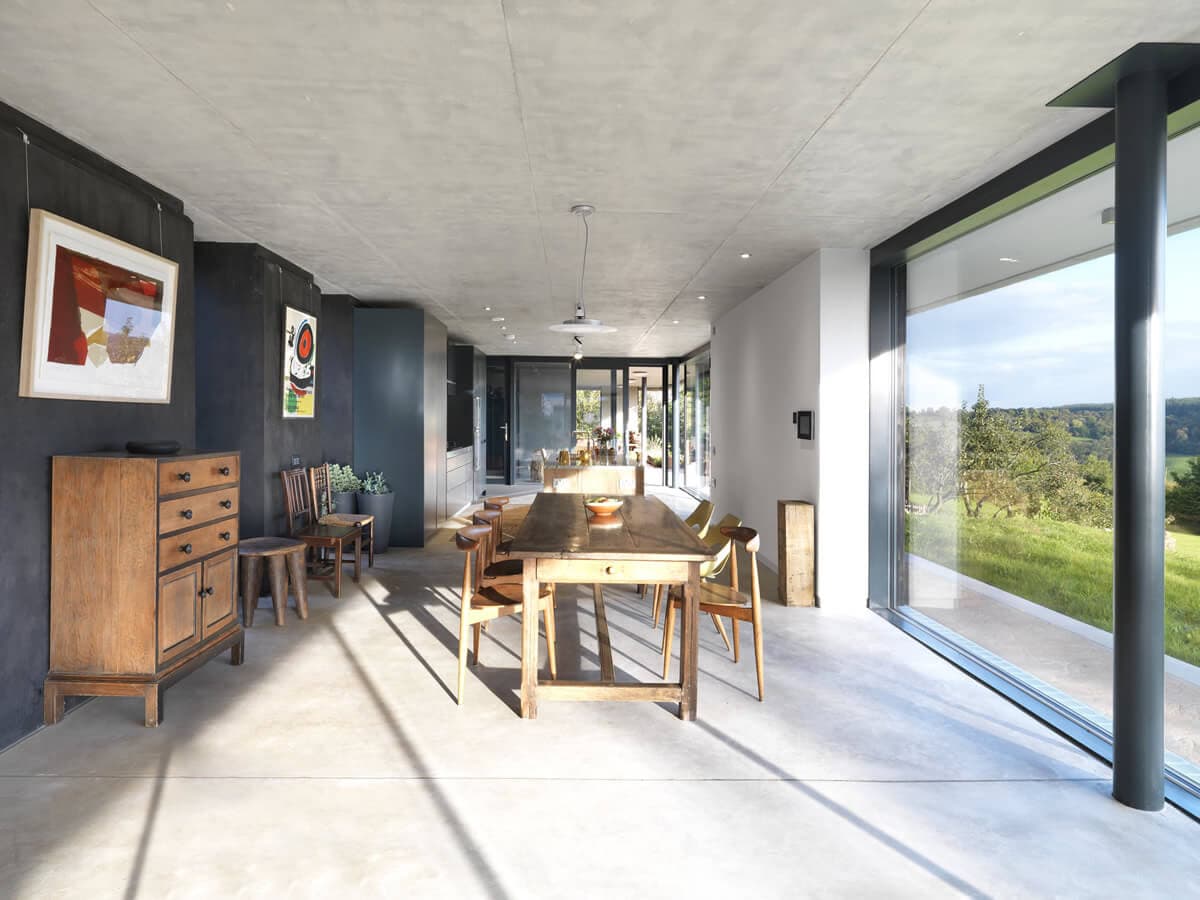

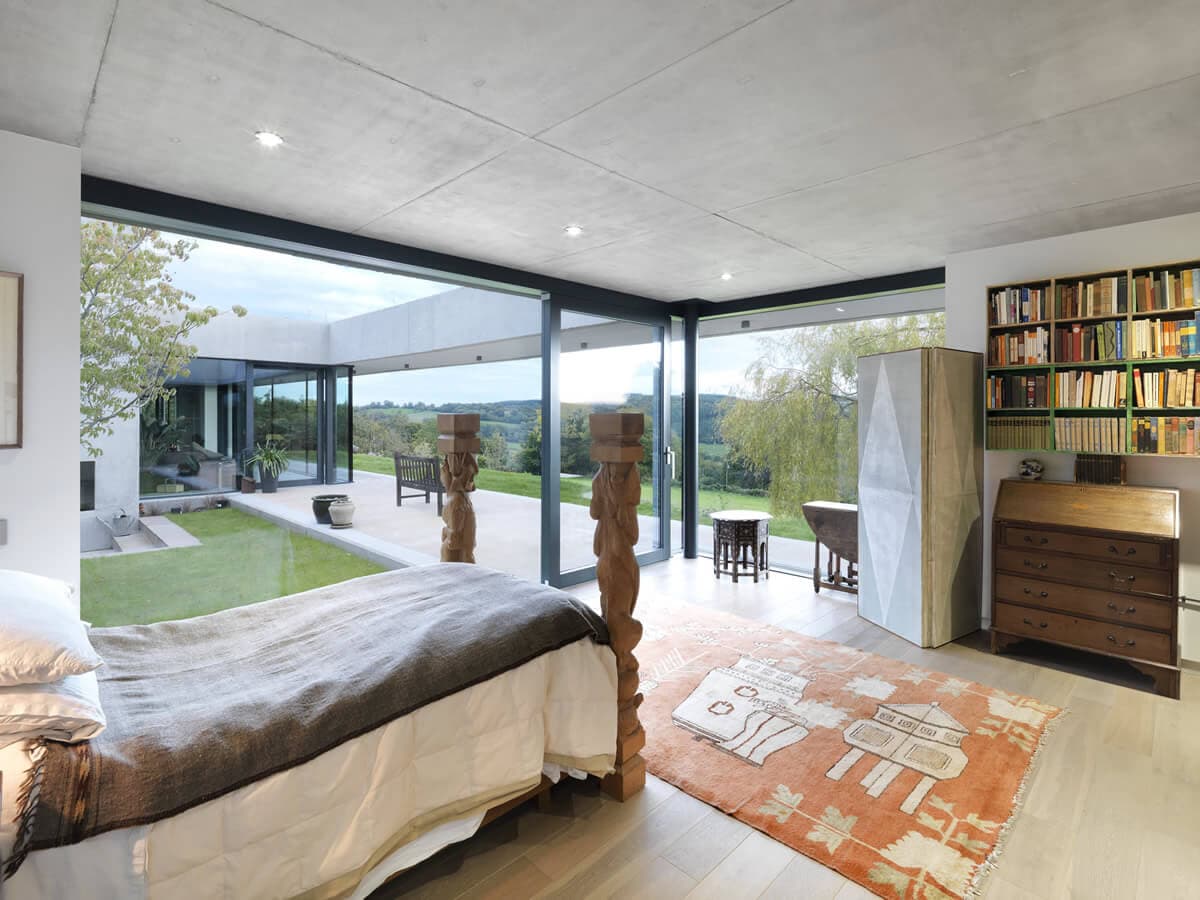

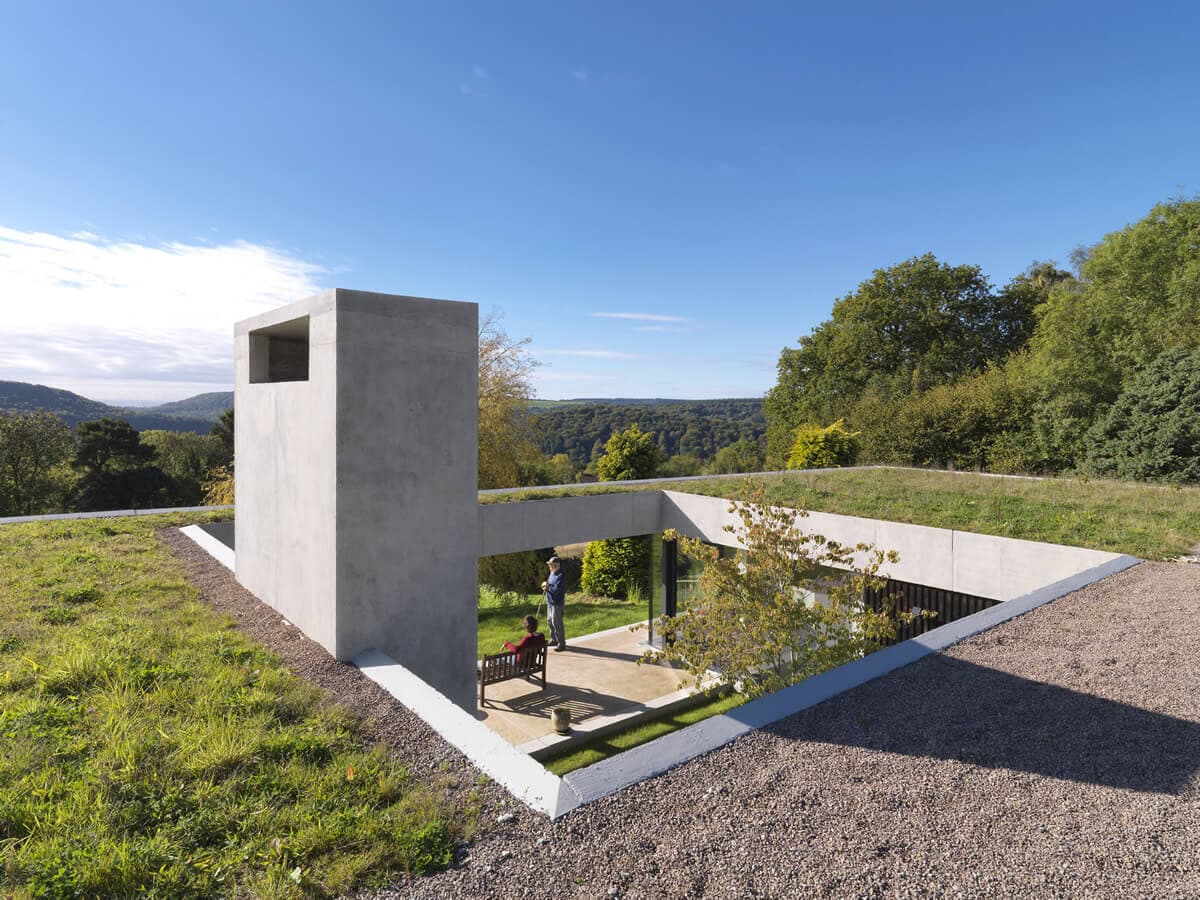

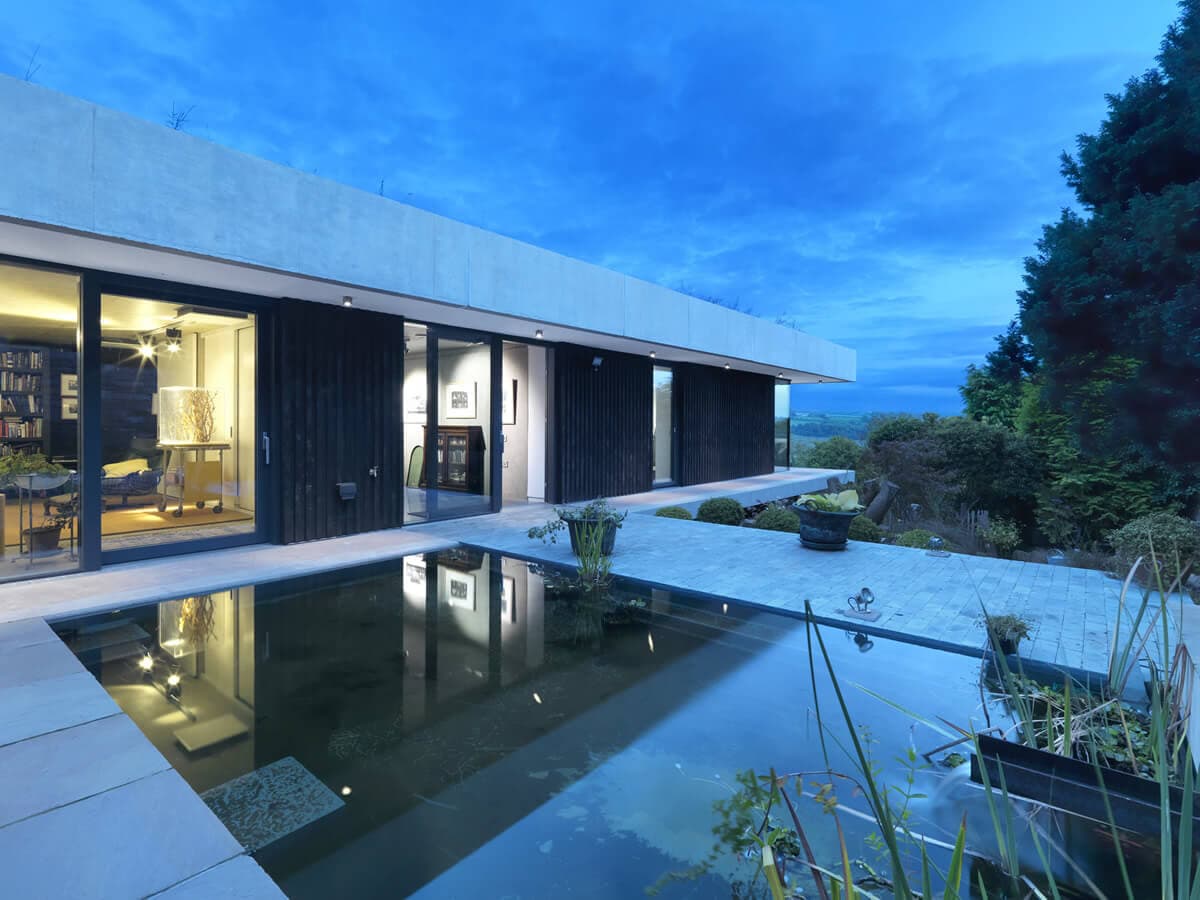

The simplicity of the house, which was undoubtedly hard-won, is founded on rigour and restraint. This is a house with a field on top - not an architectural green roof but a proper field, punctured with light wells that creatures are having to learn to avoid. It is a concrete house where the concrete feels warm and luxurious and a considered and crafted palette of surfaces form a backdrop for the artist-owners own refined art and furniture. The design eloquently and effortlessly tackles many familiar issues; the blurred relationship between interior and exterior space, the penetration of light into a deep single aspect plan, the control of sustainability without flaunting it. The key architectural device is a rigorous plan organisation separating studio and working spaces on the uphill side and glass fronted living spaces on the downhill side to take advantage of spectacular views. The building’s backbone is a linear circulation space driven through the plan perpendicular to the site slope, with the front door at one end and Wales at the other. The entrance is a modernist set-piece with a covered approach flanked by a black pigmented concrete pavilion and a simple solid open stair running through a rectangular puncture in the roof plane. Channelled views through the glass door reveal the spine, active as a gallery space opens to and illuminated by the living space on the downslope side. Fleeting glimpses of the retired owner’s traversing the house on micro-scooters confirmed the very definite feeling that we wanted to enter. To misquote Renee Zellweger in Jerry Maguire: they had us at Hello.

Keith Brownlie

Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse
Outhouse

Client: Private Client Size: 490 m² Stage: Completed 2015 Awards: Winner of the BBC’s Peoples vote for the RIBA Stirling Prize Shortlisted for the RIBA House of the Year, Winner of The Sunday Times British Homes Award for one-off house over 5,000 sq ft and the prestigious Manser Medal, RIBA Award and RIBA South West Building of the Year 2016, Concrete Society Awards winner 2016.
